Application
|

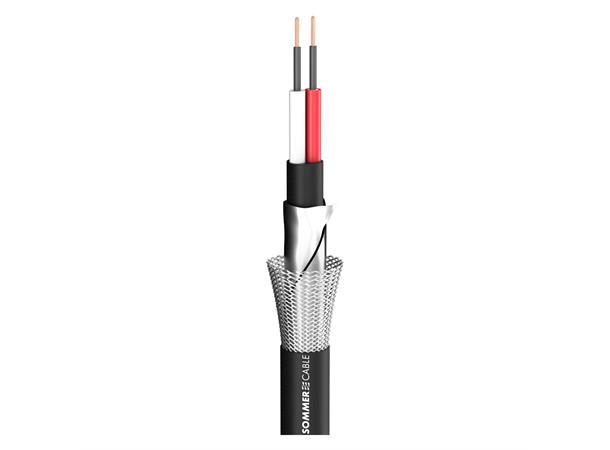

Microphone Cable
|
Application area
|
- Installation
- Mobile outdoor / indoor
- Studio / Broadcast
|
AWG (audio)
|
23
|
BPVo-Euroclass
|
Fca
|
Capac. cond./cond. per 1 m (audio)
|
46 pF
|
Capac. cond./shield. per 1 m (audio)
|
90 pF
|
Colour
|
black
|
Colour detailed
|
black
|
Conductor insulation material
|
HD-PP
|
Conductor insulation Ø
|
1,55 mm
|
Conductor resistance per 1 km
|
78 Ohm
|
Copper strand Ø (audio)
|
0,07 mm
|
Copper strands (audio)
|
65
|
Farge
|
Sort
|
Fire load per m
|
0,22 kWh
|
Height
|
7,6 mm
|
Impedance
|
110 Ohm
|
Inner conductor (audio)
|
2
|
Inner conductor Ø (audio)
|
0,56 mm
|
Insulation resist. per 1 km
|
0,2 G Ohm
|
Insulation resist. per 1 km (audio)
|
0,2 G Ohm
|
Jacket material
|
S-PVC
|
Jacket Ø
|
7,6 mm
|
Materiale
|
PVC
|
Number of Channels (audio)
|
1
|
Packing
|
100 m, bulk stock
|
Properties
|
- Analog
- Digital 110 Ohm AES / EBU
- OFC oxygen free copper
|
Shield. resistance per 1 km
|
10 Ohm
|
Shielding
|
Copper braiding tin-plated 95% + AL-fleece + filler strand
|
Shielding factor
|
1
|
Signal transmission
|
symmetrical
|
Style variant
|
round
|
Temperature max.
|
70 °C
|
Temperature min.
|
-25 °C
|
Type
|
Mikrofonkabel
|
UV-resistant
|
Yes
|
Weight per 1 m
|
75 g
|
Width
|
7,6 mm
|
