Antall artikler funnet:

13,-

Article number:	300-0031
Name:	SC-Onyx Tynee
EAN:	4049371002080
Properties:	Analog, OFC oxygen free copper
Application area:	Installation, Studio / Broadcast
Application:	Patch & Instrument Cable
Colour:	black
Signal transmission:	asymmetrical
Construction:	LI2YDY1x0,22mm2
Jacket material:	PVC
Jacket Ø [mm]:	4,00
Jacket Ø ["]:	0.1575
Number of Channels (audio):	1
Inner conductor:	1
Inner conductor (audio):	1
Inner conductor (audio) [mm²]:	0,22
Inner conductor (audio) [sqin]:	0.0003
Inner conductor Ø (audio) [mm]:	0,53
Inner conductor Ø (audio) ["]:	0.0209
AWG (audio):	24
Shielding:	Copper spiral shielding
Shielding factor [%]:	95
Copper strands (audio):	7
Copper strand Ø (audio) [mm]:	0,20
Copper strand Ø (audio) ["]:	0.0079
Conductor insulation material:	PE
Weight per 1 m [g]:	18
Weight at 1000 ft. [lbs]:	12.1125
UV-resistant:	yes
Fire load per m [kWh]:	0,12
Style variant:	round
Packing:	100 m spool
Temperature min. [°C]:	-20
Temperature max. [°C]:	70
Width [mm]:	4
Width ["]:	0.1575
Height [mm]:	4
Height ["]:	0.1575
Capac. cond./shield. per 1 m (audio) [pF]:	125
Capacity wire/electic screen at 1 ft. (audio) [pF]:	38.1
Insulation resist. per 1 km [GO]:	1
Insulation resist. per 1000 feet [GO]:	0.3048
Insulation resist. per 1 km (audio) [GO]:	1
Insulation resist. per 1000 feet (audio) [GO]:	0.3048
Conductor resistance per 1 km [O]:	85
Conductor resistance per 1000 ft. [O]:	25.908
BPVo-Euroclass:	Fca

Antall artikler funnet:

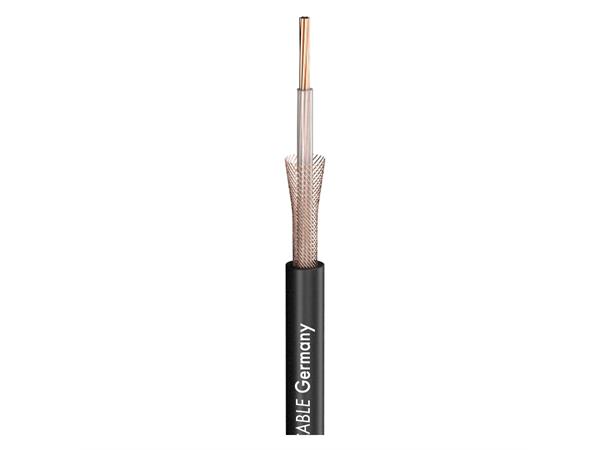

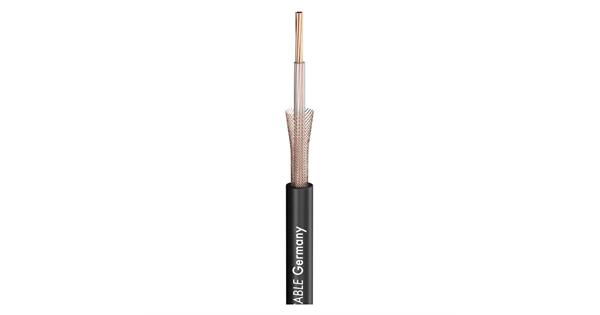

Cable SC-Onyx Tynee

Patch & Instrument 1 x 0,22 mm²; PVC Ø4

Varenr: 300-0031

13,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.

ikke på lager (14 dager)

Beskrivelse

Article number:	300-0031
Name:	SC-Onyx Tynee
EAN:	4049371002080
Properties:	Analog, OFC oxygen free copper
Application area:	Installation, Studio / Broadcast
Application:	Patch & Instrument Cable
Colour:	black
Signal transmission:	asymmetrical
Construction:	LI2YDY1x0,22mm2
Jacket material:	PVC
Jacket Ø [mm]:	4,00
Jacket Ø ["]:	0.1575
Number of Channels (audio):	1
Inner conductor:	1
Inner conductor (audio):	1
Inner conductor (audio) [mm²]:	0,22
Inner conductor (audio) [sqin]:	0.0003
Inner conductor Ø (audio) [mm]:	0,53
Inner conductor Ø (audio) ["]:	0.0209
AWG (audio):	24
Shielding:	Copper spiral shielding
Shielding factor [%]:	95
Copper strands (audio):	7
Copper strand Ø (audio) [mm]:	0,20
Copper strand Ø (audio) ["]:	0.0079
Conductor insulation material:	PE
Weight per 1 m [g]:	18
Weight at 1000 ft. [lbs]:	12.1125
UV-resistant:	yes
Fire load per m [kWh]:	0,12
Style variant:	round
Packing:	100 m spool
Temperature min. [°C]:	-20
Temperature max. [°C]:	70
Width [mm]:	4
Width ["]:	0.1575
Height [mm]:	4
Height ["]:	0.1575
Capac. cond./shield. per 1 m (audio) [pF]:	125
Capacity wire/electic screen at 1 ft. (audio) [pF]:	38.1
Insulation resist. per 1 km [GO]:	1
Insulation resist. per 1000 feet [GO]:	0.3048
Insulation resist. per 1 km (audio) [GO]:	1
Insulation resist. per 1000 feet (audio) [GO]:	0.3048
Conductor resistance per 1 km [O]:	85
Conductor resistance per 1000 ft. [O]:	25.908
BPVo-Euroclass:	Fca

Teknisk info

Application	Patch & Instrument Cable
Application area	Installation Studio / Broadcast
AWG (audio)	24
BPVo-Euroclass	Fca
Capac. cond./shield. per 1 m (audio)	120 pF
Colour	black
Colour detailed	black
Conductor insulation material	PE
Conductor resistance per 1 km	115 Ohm
Copper strand Ø (audio)	0,10 mm
Copper strands (audio)	32
Farge	Sort
Fire load per m	0,23 kWh
Height	3,8 mm
Inner conductor (audio)	0,25 mm² 1
Inner conductor Ø (audio)	0,56 mm
Insulation resist. per 1 km	1 G Ohm
Insulation resist. per 1 km (audio)	1 G Ohm
Jacket material	PVC
Materiale	PVC
Number of Channels (audio)	2
Packing	100 m spool
Properties	Analog OFC oxygen free copper
Shielding factor	0,9
Signal transmission	asymmetrical
Style variant	round
Temperature max.	70 °C
Temperature min.	-20 °C
UV-resistant	Yes
Weight per 1 m	38 g
Width	8,3 mm
