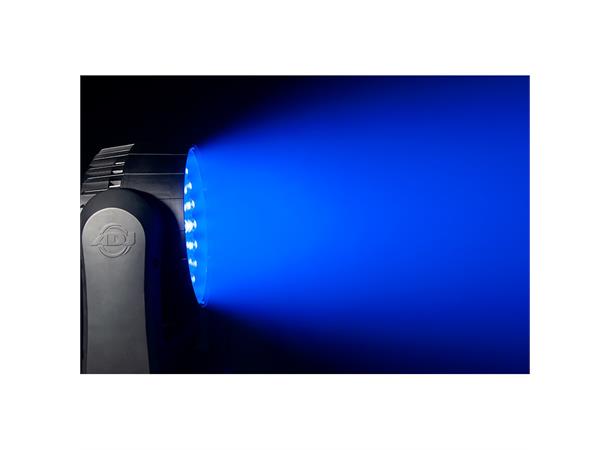

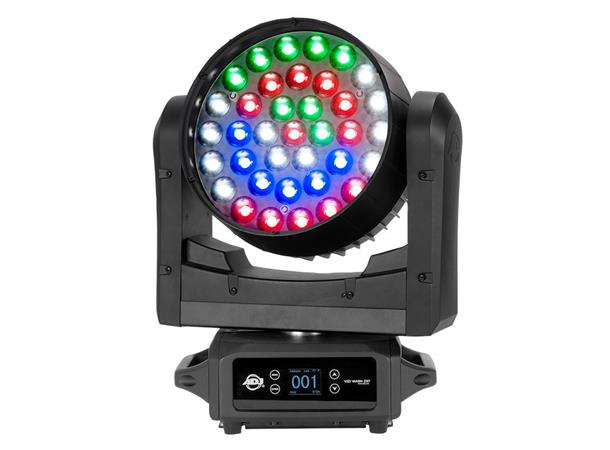

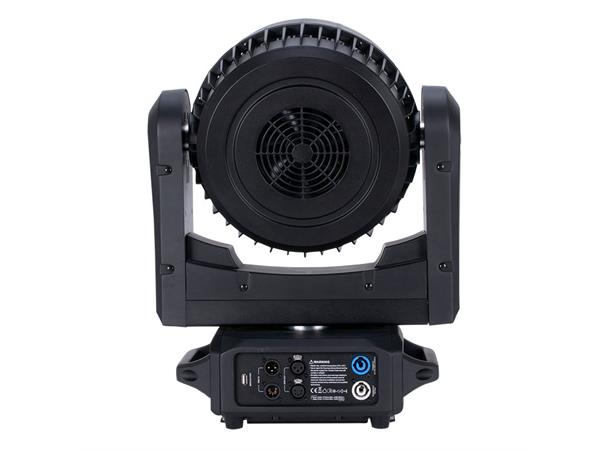

The Vizi Wash Z37 is a 740W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and 37x 20W Quad (RGBW / 4-IN-1) LEDs. It features 4 or 11 zones of LED ring control, smooth 16bit dimming control from 0-100%, Locking Power In/Out to daisy chain power, both Locking 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed. There are 64 built-in color macros, 44 Color Temperature DMX Presets from 2700K-7000K, 16bit fine zoom control and 5 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions. Specifications:

Source

• 37 OSRAM RGBW QUAD-LEDs

• Individual LED Wattage: 20W

• Average LED Lifetime: 50,000 hrs

Optics

• Beam Angle: 10°-60°

• 16bit Motorized Zoom 10°-60°

Control

• 2 Operational Modes: Program Mode & DMX Control

• 5 DMX Channel Mode: 14, 15, 17, 18 or 72 Channels

• RDM compatible (Remote Device management)

• 16bit Electronic Dimming 0-100%

• 6 Dimmer Curves

• Adjustable Dimmer Delay Time: 0.1secs - 10 secs

• Adjustable Gamma Brightness: 1.0/2.0/2.2/2.4/2.6/2.8

• Various strobe effects

• Display: Color display with 6-button function menu

• 11-Zone & 4 Ring-Control

• 16bit Pan 540°

• 16bit Tilt 270°

• Pan/Tilt Target Mode

• 3 Fan Modes : Auto/High/Silent

Colors

• RGBW Color Mixing

• 64 Color Presets

• Built-In Zone Chase Patterns

• 44 Color Temperature Presets 2700K - 7000K

Construction

• PVC molding

• Includes Quicklock Omega Brackets

Electrical

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 525W

Connections

• 3-& 5pin Locking DMX In/Out connections

• Locking Power In connection

• USB-Service Port for Firmware updates

Dimensions & Weight

• Dimension: 408,4 × 226 × 520,3

• Weight: 18 kg.
