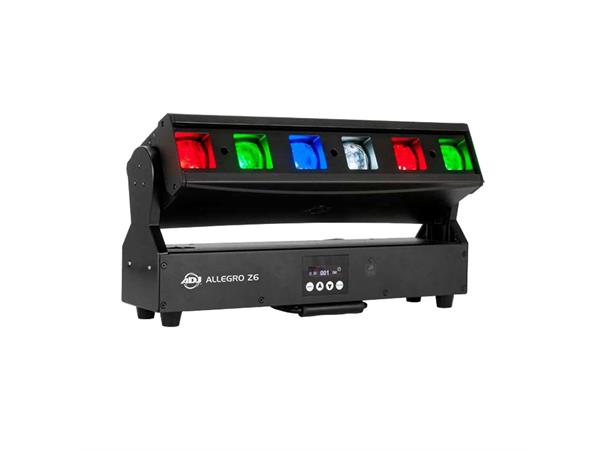

The ADJ Allegro Z6 is a pixel zoom bar wash luminaire with motorized zoom and 220-degree Tilt. It features individual 30W RGBW 4-in-1 LEDs, ultra-wide 3.5°- 38° motorized zoom, full individual pixel control, variable dimming curves, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET (DMX over Ethernet) support, Locking 5pin DMX in/out, Locking RJ45 in/out, and IP65 Locking Power in/out connections, flicker free operation for TV and Film, 4 button control 180° reversible menu display and a multi-voltage universal auto switching power supply (100-240V). Specifications:
Source
• Light Source: 6 RGBW LEDs (Red, Green, Blue & White LED)
• Individual LED wattage : 30W
• Average LED lifetime :approximately 50,000 hrs.
Optics
• Variable Beam Angle: 3.5 - 38 degrees
• Individual Pixel Control, Pixel Flip Mode
• Motorized Zoom
• 6590 lux @ 5m/3.5 degree/Full On - 353 lux@5m/38 degree/Full On
Control
• KlingNet, ArtNet, sACN and DMX Control
• 2 DMX Modes: 17 & 37-channel
• RDM compatible
• 16bit Electronic Dimming: 0 - 100%
• 220-degree motorized Tilt
• 7 built-in Macros
• 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Adjustable dimming delay time from 0.1secs - 10 secs
• Adjustable LED refresh Rate : 900Hz - 25kHz
• Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.6/2.8
• Silent Fan Mode
• LED pulse and strobe effect
• 4-button, DMX digital display on rear panel
Colors
• RGBW Color Mixing
• 15 Color Temperature Presets from 2700K - 7000K
• Separate DMX channels for Foreground and Background color control
Construction
• Metal Housing
• Alignment Pin Switch for perfect alignment of multiple fixtures
• Tilt Lock for stable transporting
• Folding carrying handle
Electrical
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 240W

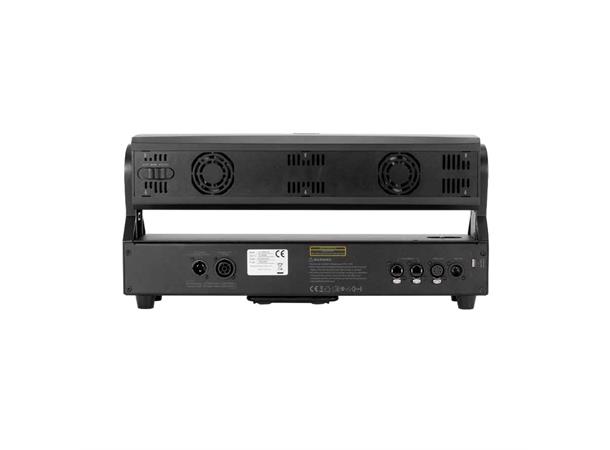

Connections
• 5-pin Locking DMX connectors
• IP65 Locking Power In/Out connections
• Locking RJ45 In/Out for KlingNet/ArtNet control
• USB Update Port
Dimensions & Weight
• Dimensions (LxWxH): 500 x 113 x 278mm
• Weight: 10 kg.
