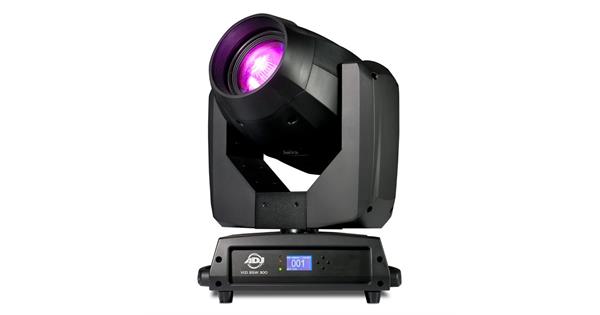

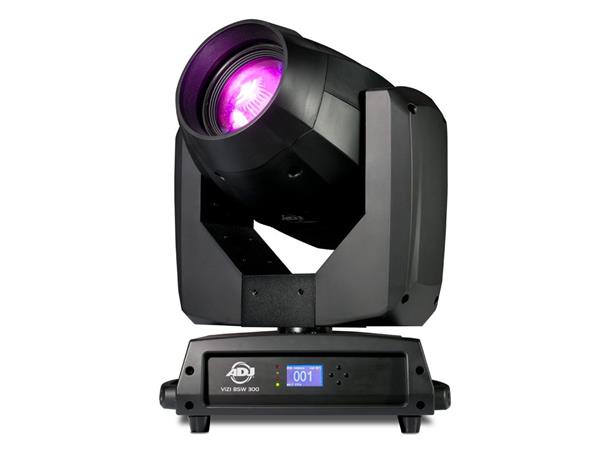

The Vizi BSW 300 uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture. What’s more, is it comes in a smaller footprint than most other movers in its class.

The Vizi BSW 300 offers motorized focus, two 6-facet rotating prisms (one linear & one circular), 2 separate color wheels, 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a LCD function display on the front panel, with the rear panel offering power locking In/Out and 3-pin & 5-pin DMX connections. Specifications:

Source

• Cold White LED Engine

• Lamp Wattage: 300W

• Average Lifetime: 50,000 hrs

• Color Temperature : 8000K

• CRI: 70

Optics

• Beam Angle:

Beam Mode : 1°-7°

Spot Mode: 8°-17°

Wash Mode : 18°-26°

• Circular & Linear 6-facet rotating prisms

• 26° Frost filter

• Motorized Focus

Control

• 3 operational Modes: Internal Programs, Sound Active or DMX Control

• 2 DMX Channel Modes: 17/20 Channels

• RDM compatible (Remote Device management)

• 5 Dimmer Curves

• Various strobe effects

• Display: LCD display with 4-button function menu

• 16bit Pan 540°

• 16bit Tilt 240°

Colors

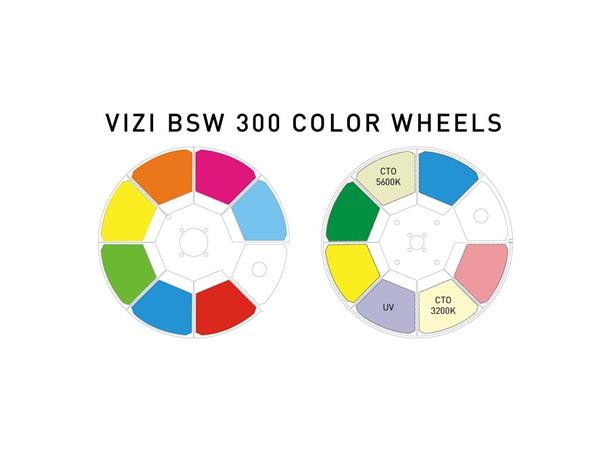

• Color Wheel 1 with 7 colors + White

• Color Wheel 2 with 4 colors + 3200K CTO + 5600 CTC + UV + White

• Color Indexing on both color wheels

Gobos

• Gobo Wheel 1 with 6 static Gobos + 3 beam reducers + Open

• Gobo Wheel 2 with 7 rotating/replaceable Gobos + Open

Construction

• PVC molding

• Includes Quicklock Omega Brackets

Electrical

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 345W

Connections

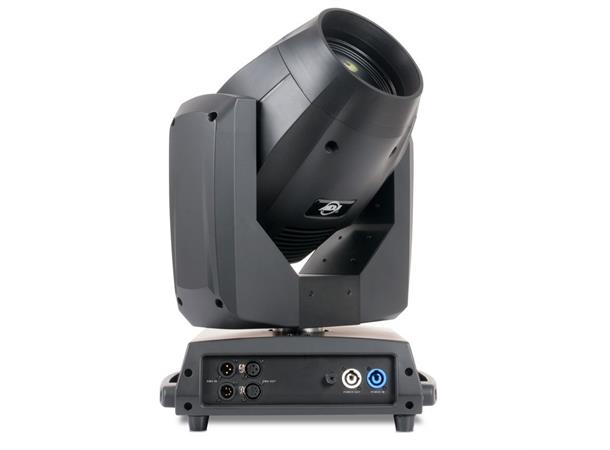

• 3-& 5pin Locking DMX In/Out connections

• Locking Power In/Out connections

Dimensions & Weight

• Dimension: 376 × 325 × 545mm

• Weight: 22 kg.
