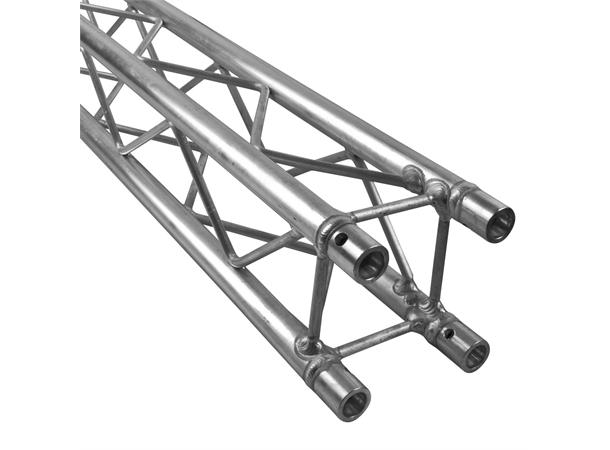

DT 14/2-050 Decorative truss system

DT 14/2-050

Decorative truss system

Varenr: 1724100031
1 457,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport

DuraTruss DT 14-050 - 4-Point Truss

The DT14 system of DuraTruss is a decorative truss system. The DT14 is connected through a conical connection (spigot), trusspin and safetyclip. The DT14 is suitable for shops, displays or even at home as a decorative object. Through a boxcorner you realize 90° angles in all directions. There are several baseplates available for stability and protection of your floor.

- Decorative
- Easy to pair with box-corner (MJB)
- Easy installation
- Low weight
- Space saving during transport


Width: 100mm

Height: 100mm

Diameter: 20mm

Technical Data:

Tube Diameter: 20mm x 2mm (0.8 x 0.08 inch)

Cross brace diameter: 6mm (0.24 inch)

Material: Alloy EN-AW 6082 T6 (AIMgSi1 T6)

The DT 14-100 will be delivered with 4 spigots, 8 truss pins and 8 safety clips!

Teknisk info
