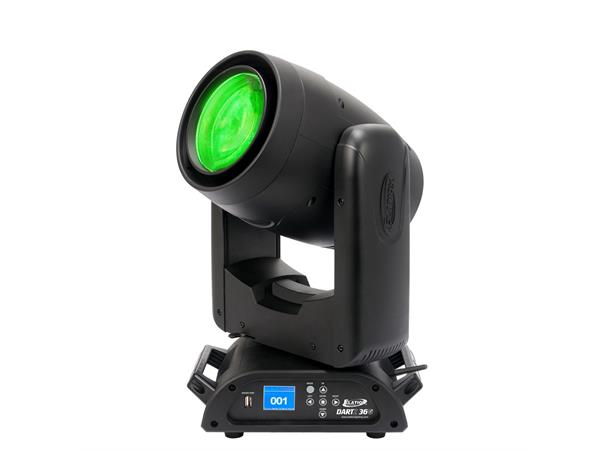

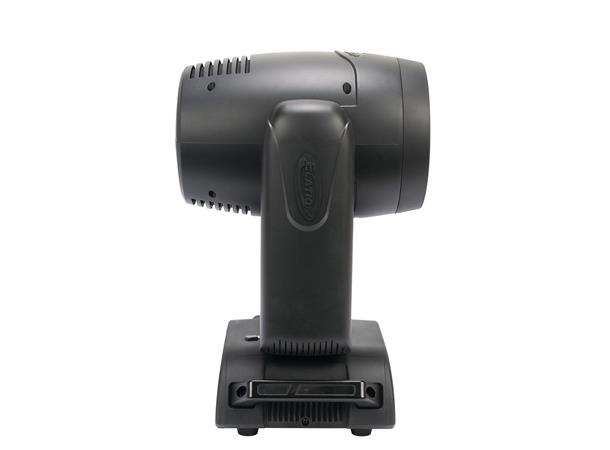

The DARTZ 360™ is a unique, full color-mixing LED beam fixture with gobos and effects that offers new projection possibilities from a narrow-beam luminaire. A single-source RGB LED engine produces a powerful and tight 3-degree powerful beam for smooth, color-mixed beam effects similar to a discharge lamp. Extremely bright for its wattage and size, the combined LED engine source/optics package not only provides brighter output than previous multi-chip LED “beam” solutions, the field of light is also noticeably more homogenous. Safe to use at any distance, the DARTZ 360 is ideal for use in both small and big clubs and events.
"
FEATURES
Unique, Compact Single Source LED Beam Luminaire
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
No Minimum Safe Project Distance Like Discharge Fixtures
New RGB Color Mixing Technology
3° Beam Angle
Wide Focus Range
8-Facet and Linear, Independent Rotating and Indexing Prisms
Prism Morphing
Linear Wash Frost Filter
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode (Power Save)
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

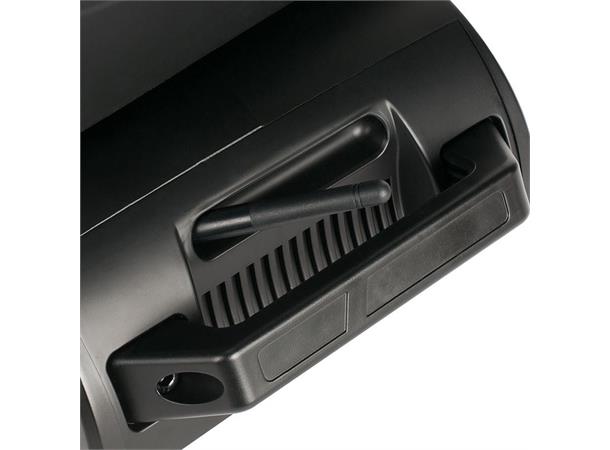

Internal E-FLY™ Wireless DMX Receiver
SOURCE
Patent Pending Single Source RGB LED Engine
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
61,300 LUX 5,695 FC @ 16.4’ (5m)
EFFECTS
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
8-Facet and Linear, Independent Rotating and Indexing Prisms
Prism Morphing
Linear Wash Frost Filter
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGB Color Mixing
GOBOS
1 Gobo Wheel
14 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
3 DMX Channel Modes (19 / 22 / 25)
DMX, Art-NET, sACN and KlingNET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
USB Firmware Service Port
Internal E-FLY™ Wireless DMX Receiver

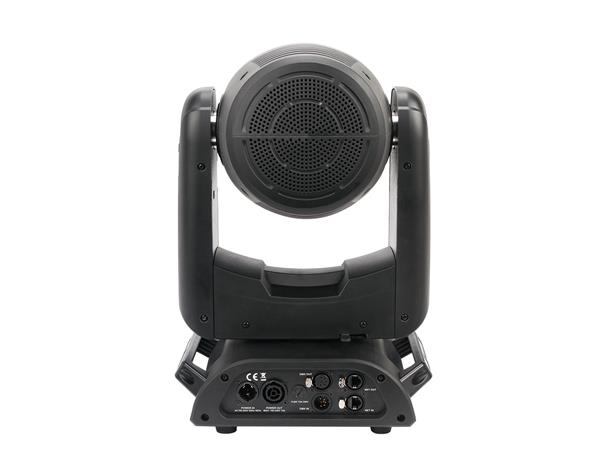

Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET, sACN and KlingNET)
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 11.2” (284mm)
Width: 7.7” (196mm)
Vertical Height: 17.9” (455mm)
Weight: 28.0 lbs. (12.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
154W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
2 Omega Brackets
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1521000336 Touring Case 4x Dartz 360
1521000339 PRO Case 4x Dartz 360
1322000060 C-Loader II
1322000055 E-FLY Wireless DMX Transceiver
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
