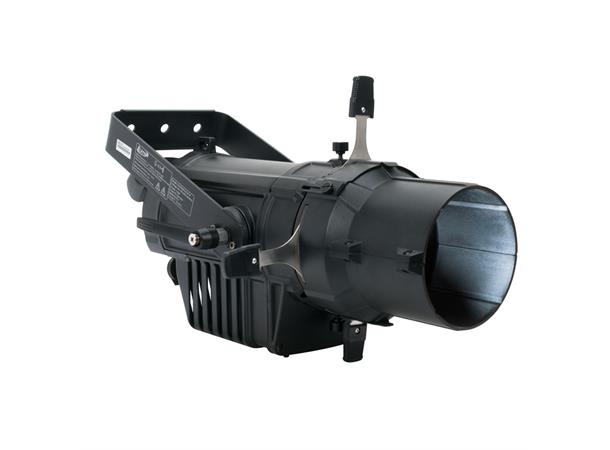

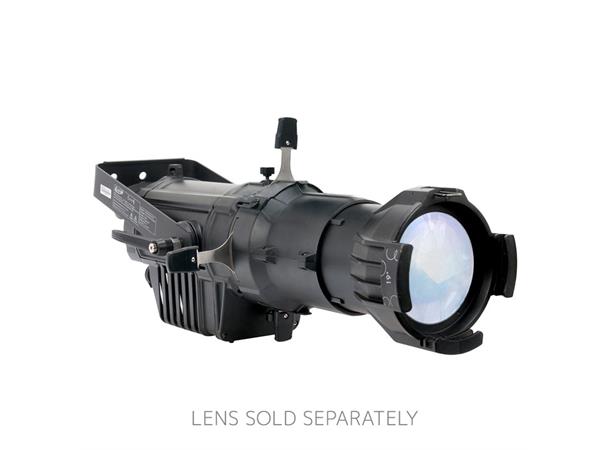

CW Profile HP IP (No Lens)

12,000+ total lumens

Varenr: 1236100136
27 485,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoTilbehørSupport
Beskrivelse
The CW Profile HP IP™ is a high-power, cool-white ellipsoidal spot and the WW Profile HP IP™ is a high-power, warm-white ellipsoidal spot of the highest quality. Both are fully IP65-rated dust and waterproof designs for use in any environment, indoors or out. Powered by a 130W cool-white 5,600K LED engine and 130W warm-white 3,000K LED engine respectively, they project a superior quality of light and are an excellent choice for the wide variety of white light illumination needs required in broadcast, worship or theater from highlighting performers or scenery to illuminating speakers. They include 4-blade manual framing shutters with 19°, 26°, 36°, and 50° interchangeable lens options sold separately. Accessories like a gobo holder and manual iris can be used with these IP65-rated ellipsoidal luminaires.

"
FEATURES
IP65 Rated Dust and Water Protection
Warm White or Cool White LED Profile Luminaire
Very Efficient 92 Lumens per Watt
4-Blade Manual Framing Module in Rotatable Barrel
Interchangeable Lens Options (19°, 26°, 36°, 50°)**
Supports B Size Metal or HT Transparency Gobos
Supports Adjustable Iris
Silent Operation
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

SOURCE
130W Cool White LED Engine
12,000 Total Output Lumens, 5,600K, 90CRI
50,000 Hour Average LED Life***

PHOTOMETRIC DATA
18,917 LUX 1,757 FC @ 9.8’ (3m)*

EFFECTS
Supports Adjustable Iris
High Speed Electronic Shutter and Strobe
Variable Dimming Curves

COLOR
Cool White 5,600K LED

GOBOS
Supports IP65 Gobo Rotator**
Supports B Size Metal or HT Transparency Gobos
Gobo Size: OD 86mm / ID 64mm / Thickness 0.15mm

CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 3 / 6 / 8)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Dimming Control
4 Button Control Panel
LCD Menu Display
6pin IP Gobo Rotator Connector
Locking 3/5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out

SIZE / WEIGHT
Length: 29.7” (753mm)
Width: 13.9” (353mm)
Vertical Height: 13.9” (353mm)
Weight: 24.0 lbs. (11 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
170W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS
Locking IP65 Power Connector to CEE 7/7 Cable

OPTIONAL ACCESSORIES
1322000054 E Loader III
1236100117 PHDL19 Lens for LED Profile
1236100118 PHDL26 Lens for LED Profile
1236100119 PHDL36 Lens for LED Profile
1236100120 PHDL50 Lens for LED Profile
1236100128 Goboholder for LED Profile
1236100164 IP Gobo Rotator


*with 26° lens
**sold separately
***LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



"
