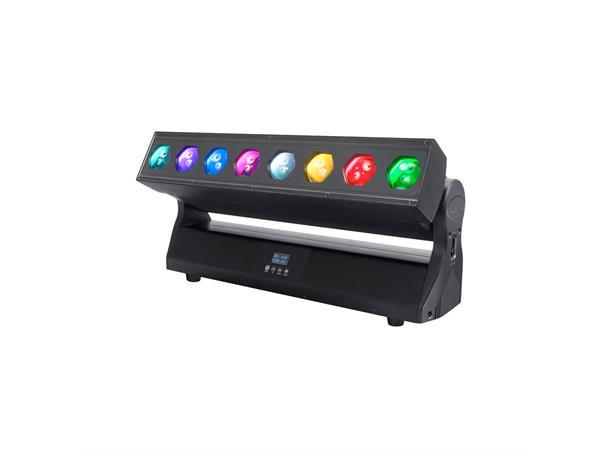

With the Chorus Line™ of flexible LED batten luminaires, strip lights have graduated from static, single-purpose wash lights to more maneuverable, adaptable lighting effects that can fulfill a number of purposes in a single show. This new range of multi-purpose LED batten wash luminaires features a wide motorized zoom, dynamic 220° tilt axis movement and the power to compete with LED video. Available in two versions, both the Chorus Line 8™ and the Chorus Line 16™ house 40W RGBW LEDs with full pixel control and are ideal for use as visual effects, foot lights, wash lights, cyc lights and more.
"
FEATURES
Moving Bar Effect Luminaire
40W RGBW LEDs
Fast and Precise 16-Bit 220° Motorized Tilt Movement
Pixel Controlled LEDs
4°- 40° Motorized Zoom
Tilt Lock
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
8x 40W RGBW Multi-Chip LEDs
3,000 Total Output Lumens
50,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
24,173 LUX 2246 FC @ 9.8’ (3m) (Min. Zoom)
884 LUX 82 FC @ 9.8’ (3m) (Max. Zoom)
EFFECTS
Fast and Precise 16-Bit 220° Motorized Tilt Movement
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW Multi-Chip LEDs
Variable Color Temperature (2,700K – 7,000K)
CONTROL / CONNECTIONS
3 DMX Channel Modes (16 / 18 / 46)
DMX, Art-NET and Kling-NET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Tilt and Dimming Control
4 Button Touch Control Panel
180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET and Kling-NET)
Locking Power Connector In/Out
SIZE / WEIGHT
Length: 21.3” (541mm)
Width: 5.9” (150mm)
Vertical Height: 11.5” (291mm)
Weight: 25 lbs. (11.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
359W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
2 Omega Brackets
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1521000329 PRO Case 3x Chorus Line 8
1521000330 PRO Case 6x Chorus Line 8
1521000332 Touring Case 3x Chorus Line 8
1521000333 Touring Case 6x Chorus Line 8
1322000060 C-Loader II
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
