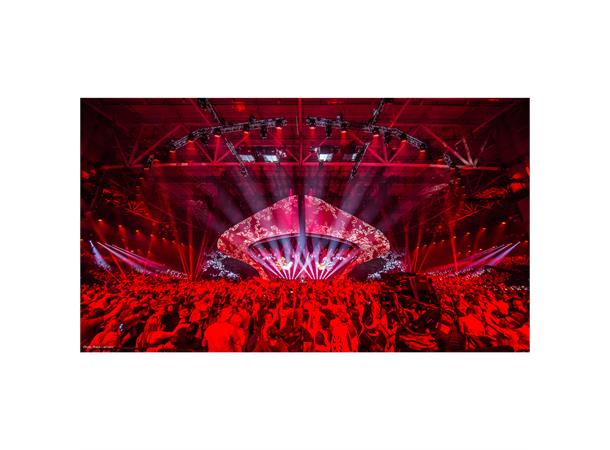

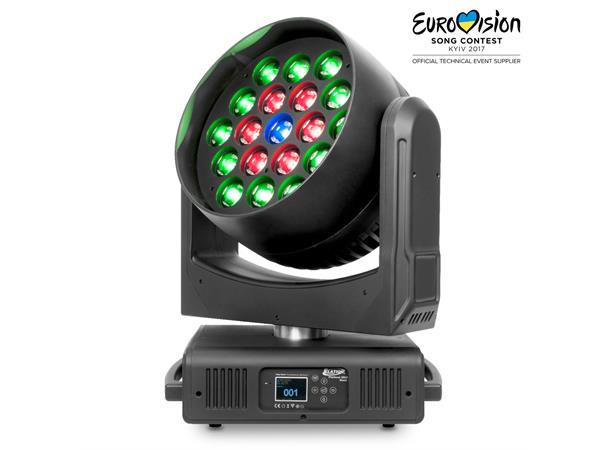

When LED power is needed the Platinum 1200 Wash™ delivers. This extremely bright LED color wash moving head luminaire with nineteen 60W Osram™ multi-chip RGBW LEDs produces color washes on par with 1500W discharge fixtures. Features include a 8° to 77° motorized zoom, pixel controlled LEDs, advanced cooling and movement control systems and much more. It makes the Platinum 1200 Wash the perfect unit for the bigger concert tours, festivals and stadium shows.
"
FEATURES
High Power Moving Head Wash Luminaire

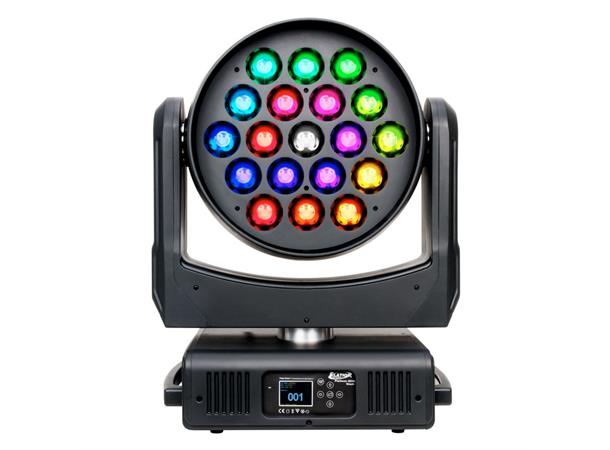

19x 60W Osram™ RGBW LEDs
Pixel or Pixel Ring Controlled LEDs
8° - 77° Wide Zoom Range
Pan/Tilt Lock
Advanced Cooling Control Systems
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
19x 60W Osram™ Multi-Chip LEDs
50,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
41,730 LUX 3,877 FC @ 16.4’ (5m) (Min. Zoom)
3,637 LUX 338 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
Pixel or Pixel Ring Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW Multi-Chip LEDs
Variable Color Temperature (2,700K – 8,000K)
CONTROL / CONNECTIONS
3 DMX Channel Modes (17 / 35 / 93)
DMX, Art-NET, sACN and Kling-NET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET, sACN and Kling-NET)
Locking Power Connector 32A In
SIZE / WEIGHT
Length: 21.0” (533mm)
Width: 16.1” (410mm)
Vertical Height: 23.2” (588mm)
Weight: 86.0 lbs. (39 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
2000W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS

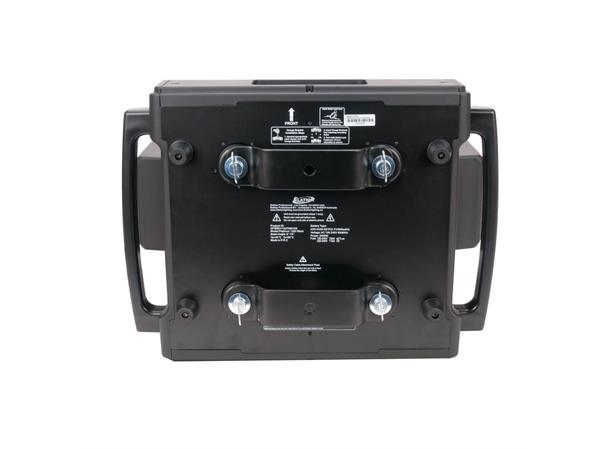

2 Omega Brackets
Locking Power Connector 32A to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III
1521000318 PRO Case 1x Platinum 1200 Wash
1521000319 PRO Case 2x Platinum 1200 Wash
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
