The RAYZOR 360Z™ is a super compact, high-speed yet surprisingly powerful beam/wash LED moving head that has use in a variety of stage or installation environments. It houses three 60W RGBW LEDs for an impressive punch of light and includes a 8° to 77° motorized zoom. The Rayzor 360Z offers surprising brightness for its size and with fast and precise 360° continuous pan and tilt rotation it can add an energizing look to any show.
"
FEATURES
Compact Beam, Wash and Effect Luminaire
3x 60W Osram™ RGBW LEDs
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Pixel Controlled LEDs
8° to 77° Motorized Zoom
Low Heat, Quiet Operation
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
3x 60W Osram™ RGBW Multi-Chip LEDs
50,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
3,760 LUX 349 FC @ 16.4’ (5m) (Min. Zoom)
157 LUX 15 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW Multi-Chip LEDs
Variable Color Temperature (2,700K – 8,000K)
CONTROL / CONNECTIONS
3 DMX Channel Modes (20 / 26 / 32)
DMX, Art-NET, sACN and Kling-NET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET and sACN)
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 11.1” (282mm)
Width: 7.9” (200mm)
Vertical Height: 16.6"" (422mm)
Weight: 17 lbs. (7.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
300W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS

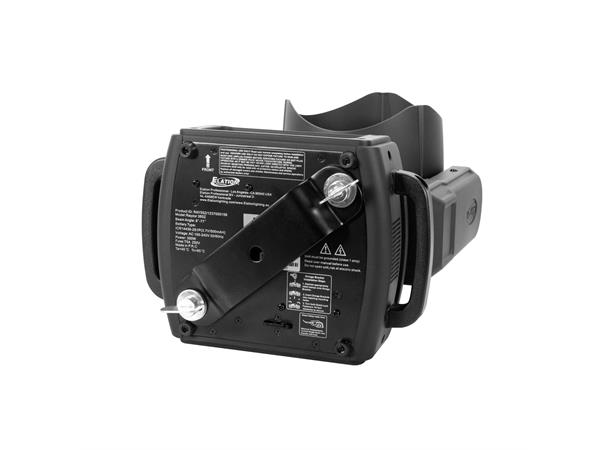

1 Omega Bracket
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1521000307 Touring Case 6x Rayzor 360Z
1521000308 PRO Case 6x Rayzor 360Z
1322000054 E Loader III
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
