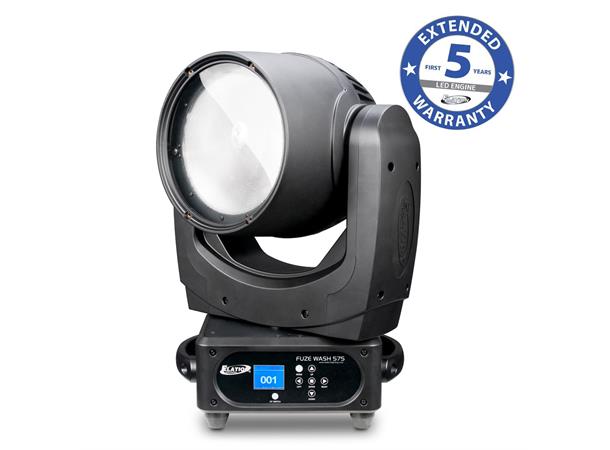

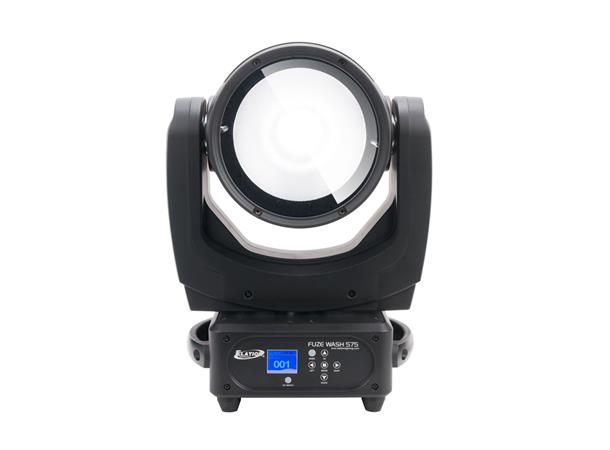

When companies present their newest products, aesthetics are crucial and lighting plays a key role with auto shows placing an especially high demand on lighting. That was the impetus behind development of the cool-white Fuze Wash 575™ LED wash moving head luminaire with motorized beam control. When branding and presentation is at the highest level, the Fuze Wash 575’s single-lens COB LEDs project the extremely uniform level of light required.
"
FEATURES
Single Source LED Wash Luminaire
1x 350W Daylight 6,800K Cool White COB LED
11° - 40° Motorized Zoom
Low Heat, Quiet Operation
Variable Dimming Modes
Flicker Free Operation for Broadcast TV and Film
SOURCE
350W Daylight Cool White COB LED
10,995 Total Output Lumens, 6,800K, 95CRI
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
5,668 LUX 527 FC @ 16.4’ (5m) (Min. Zoom)
1,040 LUX 97 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Modes
COLOR
6,800K Daylight Cool White
CONTROL / CONNECTIONS
2 DMX Channel Modes (9 / 11)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Pan, Tilt and Dimming Control
7 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display

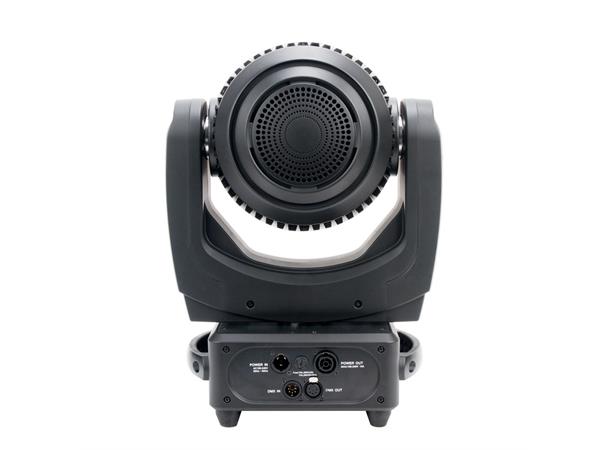

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 13.3"" (338mm)
Width: 9.0"" (229mm)
Vertical Height: 18.3"" (466mm)
Weight: 27 lbs. (12.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
425W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
1 Omega Bracket
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1237000160 Fuze Wash Z120 Snoot
1521000293 Touring Case 2x Fuze Wash Z120
1521000294 Touring Case 4x Fuze Wash Z120
1521000295 PRO Case 2x Fuze Wash Z120
1521000296 PRO Case 4x Fuze Wash Z120
1322000060 C-Loader II
SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
