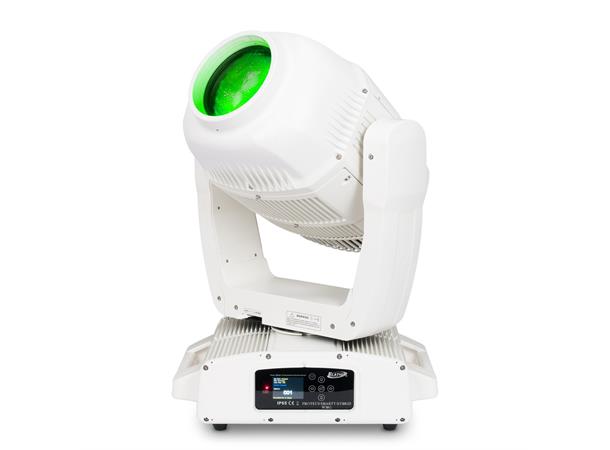

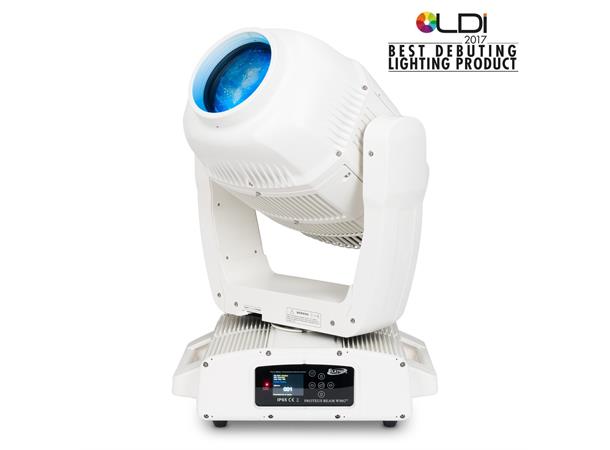

The Proteus Beam™ is an innovative full featured IP65 rated Marine Grade moving head beam luminaire. It features the Philips™ MSD Platinum 14R 280W 80CRI lamp, 7,800K, 12,000 lumens, an advanced optical system producing a precise 2° beam aperture, a revolutionary internal thermal cooling system, true CMY color mixing, high CRI filter, 13 dichroic colors including UV, CTO, CTB and white (open), 8 rotating, interchangeable glass & metal gobos and 13 static-stamped gobos, 5-facet and 32-facet rotating prisms with prism morphing, DMX, RDM (Remote Device Management), Art-NET and sACN (DMX over Ethernet) support, internal E-FLY™ wireless DMX receiver, IP65 Locking 5pin XLR Connector in/out, IP65 RJ45 Ethernet Connector in/out and IP65 Locking Power Connector in, 6 button control full color 180° reversible menu display, 500W max power consumption and a multi-voltage universal auto switching power supply (100-240V).
"
***Only on Special Order***
FEATURES
IP65 Rated Dust and Water Protection
White Marine Grade Coating
2° Beam Aperture
Extremely Powerful Beam Luminaire
Full CMY-Flag Color Mixing System
High CRI Filter
5-Facet and 32-Facet Rotating Prisms
Prism Morphing
Innovative Auto Focus Function
Pan/Tilt Lock
Internal E-FLY™ Wireless DMX Receiver
Art-NET and sACN (DMX over Ethernet) Support
RDM – Remote Device Management
SOURCE
Philips™ MSD Platinum 14R 280W Lamp
12,000 Lumens, 7,800K, 80CRI
1,500 Hour Average Lamp Life*
PHOTOMETRIC DATA
136,800 LUX 12,709 FC @ 49.2’ (15m)
EFFECTS
5-Facet and 32-Facet Rotating Prisms
Prism Morphing
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR
True CMY-Flag Color Mixing
High CRI Filter
13 Dichroic Colors Including UV, CTO, CTB + White
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 13.8mm / ID 6.0mm**
(13) Static-Stamped / Indexing Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 28)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
Internal E-FLY™ Wireless DMX Receiver
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out (Art-NET, sACN)
IP65 Locking Power Connector In
SIZE / WEIGHT
Length: 17.1” (445mm)
Width: 13.1” (331mm)
Vertical Height: 26.8” (680mm)
Weight: 77.0 lbs. (35.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
INCLUDED ITEMS
IP65 Locking XLR Cable
IP65 Locking Ethernet Cable
IP65 Locking Power Connector to CEE 7/7 Cable
(2) Omega Brackets
OPTIONAL ACCESSORIES
1322000061 IP Tester
1521000334 Touring Case 2x Proteus Beam
1521000337 PRO Case 2x Proteus Beam
1322000054 E Loader III
1322000055 E-FLY Wireless DMX Transceiver
AWARDS
LDI Award 2017 Best Debuting Lighting Product
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
"
