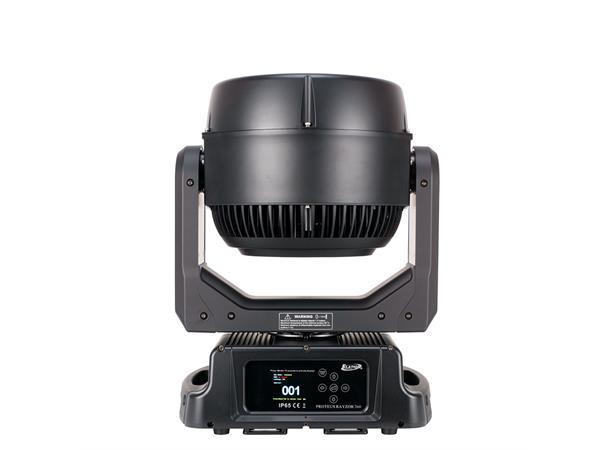

The Proteus Rayzor 760™ is a compact yet extremely powerful Wash Effects fixture featuring Elation’s unique SparkLED™ system and fast continuous Pan and Tilt motion. With its wide zoom range from 5 to 77 degrees it provides intense and well-defined mid-air beams at over 8,000 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

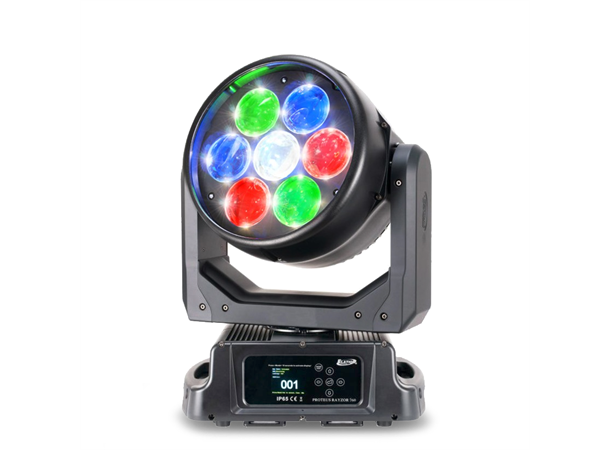

Driven by 7, independently controlled, 60W RGBW LEDs, delivering over 8,000 lumens of output with a total power of 420W, the Proteus Rayzor 760 provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor 760 offers this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.
In addition to its powerful wash and enhanced effects, the Proteus Rayzor 760 offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the SparkLEDs while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.
"
FEATURES
IP65 Rated Dust and Water Protection
Marine Grade Coated Anti-Corrosion Housing
8,000 Lumens Moving Head Wash Luminaire
7x 60W Osram™ RGBW LEDs
28x 2W White SparkLEDs
Pixel or Pixel Ring Controlled LEDs
Pixel Controlled SparkLEDs
5° - 77° Wide Zoom Range
Advanced Cooling Control Systems
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
7x 60W Osram™ Multi-Chip LEDs
28x 2W White SparkLEDs
8,000 Total Output Lumens
50,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
16,064 LUX 1,492 FC @ 16.4’ (5m) (Min. Zoom)
348 LUX 32 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Pixel or Pixel Ring Controlled LEDs
Pixel Controlled SparkLEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
RGBW Multi-Chip LEDs
White SparkLEDs
Variable Color Temperature (2,700K – 8,000K)
CONTROL / CONNECTIONS
3 DMX Channel Modes (25 / 52 / 80)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 25,000Hz)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out (Art-NET and sACN)
IP65 Locking Power Connector In/Out
SIZE / WEIGHT
Length: 14.3” (363mm)
Width: 10.2” (259mm)
Vertical Height: 19.4” (493mm)
Weight: 41.0 lbs. (18.6 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65 Specifications and documentation subject to change without notice.
OPTIONAL ACCESSORIES
1322000061 IP Tester
1322000054 E Loader III
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
