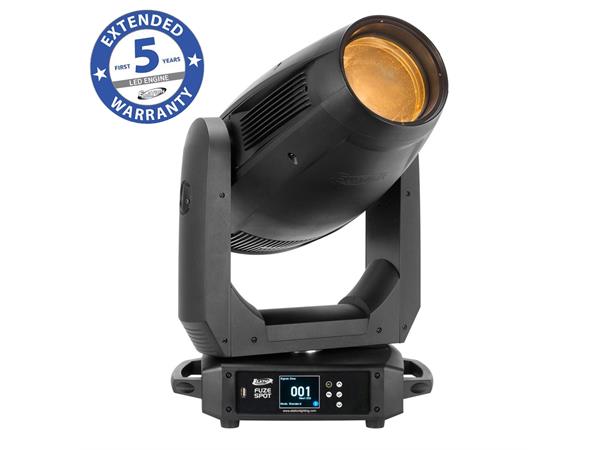

The Fuze Spot is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue Mint and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10.000 lumens. Virtual color temperature, magenta / green adjustment plus color gel emulation provide the designer with immediate access to the impressive LED color array. The Fuze Spot is designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required. Dual rotating gobo wheels, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.
"
FEATURES
10,000 Lumens Cool White 6,500K LED Spot Luminaire
7° to 42° Motorized Zoom
Full 360° Bi-Directional Animation Wheel
CMY Emulation Color Mixing System
Linear Virtual CTO Color Correction
Green/Magenta Shift
High CRI >92
2 Interchangeable, Rotating, Indexable Glass Gobo Wheels
Linear Wash Frost Filter
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode (Power Save)
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
305W 6,500K RGBMA LED Engine, 92 CRI
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
18,110 LUX 1,682 FC @ 16.4’ (5m) (Min. Zoom)
969 LUX 90 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
Full 360° Bi-Directional Animation Wheel
4-Facet Rotating and Indexing Prism
Linear Wash Frost Filter
Motorized Iris
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
RGBMA Color Array
CMY Emulation Color Mixing System
Linear Virtual CTO Color Correction
Green/Magenta Correction
Virtual Gel Swatch Book
GOBOS
2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Glass Gobos
Size: OD 29.9mm / ID 25mm
6 Interchangeable / Rotating / Indexing Glass Gobos
Size: OD 29.9mm / ID 25mm
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16” (407mm)
Width: 10.1” (256mm)
Vertical Height: 27.4” (698mm)
Weight: 46.3 lbs. (21 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
466W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Snoot
2 Omega Brackets
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000060 C Loader II
SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
"
