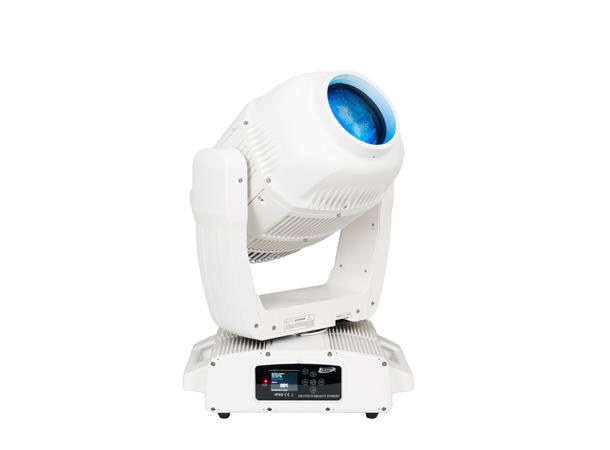

Elation is pleased to offer an IP65-rated version of the CMY color-mixing Smarty Hybrid™. The Proteus Smarty Hybrid™ is the world’s first compact CMY hybrid fixture with true IP65 rating in a white housing. Encompassing the same full feature set as the Smarty Hybrid and using the same highly efficient Philips MSD Platinum FLEX 200 lamp with exceptional (up to) 6000-hour lamp life, the Proteus Smarty Hybrid’s IP65 dust and water protection means this compact and versatile effect can be used indoors or out. Features include fast movement, motorized zoom, full CMY color mixing, 13 dichroic colors, two gobo wheels, prism overlay and frost filter.
"
***Only on Special Order***
FEATURES
IP65 Rated Dust and Water Protection
Marine Grade Coated Anti-Corrosion Housing
280W 3-in-1 Spot, Beam and Wash Luminaire
Efficient Lamp Technology: up to 6.000 hours
Lamp Power at 190W, 240W or 280W
Advanced Internal Cooling and Heating System for Operation in Freezing or High Temperatures
3° - 27° Spot, 1° - 18° Beam and 5° to 33° Wash Motorized Zoom Range
Full CMY-Flag Color Mixing System
CTO, CTB and QUAD RGBY Filters
16-Facet and Linear, Rotating and Indexing Prisms
Prism Morphing
Wash Frost Filter
Pan/Tilt Lock
Instant Hibernation Mode (Power Save) to 190W Lamp Power
Long-Term Hibernation Mode (Power Save) to 90W Lamp Power
Internal E-FLY™ Wireless DMX Receiver
SOURCE
Philips™ MSD Platinum Flex 200 190-280W Lamp
11,000 Total Output Lumens, 8,000K, 80CRI
Up to 6,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
135,108 LUX 12,552 FC @ 16.4’ (5m) (Spot)
128,426 LUX 11,931 FC @ 49.2’ (15m) (Beam)
EFFECTS
16-Facet and Linear, Rotating and Indexing Prisms
Prism Morphing
Wash Frost Filter
High Speed Mechanical Shutter and Strobe
COLOR
Full CMY-Flag Color Mixing System
CTO, CTB and QUAD RGBY Filters
13 Dichroic Colors + White (Open)
GOBOS
2 Gobo Wheels
8 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 14.0mm / ID 7.0mm**
12 Static-Stamped / Indexing Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (20 / 34)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
Internal E-FLY™ Wireless DMX Receiver
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out (Art-NET and sACN)
IP65 Locking Power Connector In/Out
SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 17.9” (454mm)
Vertical Height: 26.8” (680mm)
Weight: 71.1 lbs. (35 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
480W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
INCLUDED ITEMS
2 Omega Brackets
IP65 Locking Power Connector to CEE 7/7 Cable
IP65 Locking Ethernet Cable
IP65 Locking XLR Cable
OPTIONAL ACCESSORIES
1322000061 IP Tester
1521000334 Touring Case 2x Proteus Beam
1521000337 PRO Case 2x Proteus Beam
1322000055 E-Fly Transceiver
1322000054 E Loader III
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
"
