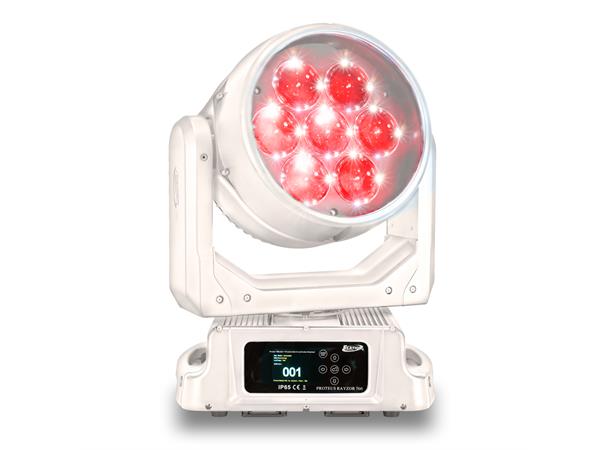

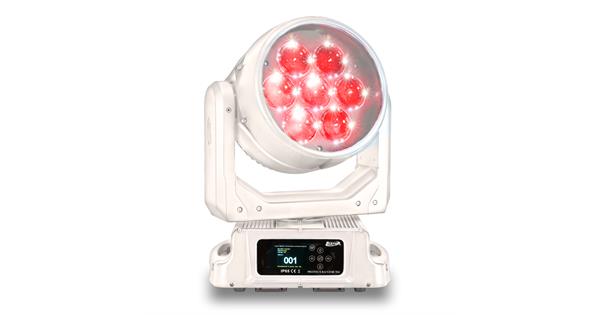

The innovative Proteus Rayzor 760 is available in a white version, the Proteus Rayzor 760 WMG™, for use in any environment. The Proteus RAYZOR 760’s multi-environmental design makes it the world's first IP65-rated luminaire with continuous pan & tilt rotation. It offers the identical feature set as the Rayzor 760, including the SparkLED™ system. SparkLED™ consists of 28 individual white LEDs strategically placed inside the lens itself to create a unique additional layer of effect, allowing designers access to a fresh and innovative way of creating interest on stage.
"
***Only on Special Order***
FEATURES
IP65 Rated Dust and Water Protection
Marine Grade Coated Anti-Corrosion Housing
8,000 Lumens Moving Head Wash Luminaire
7x 60W Osram™ RGBW LEDs
28x 2W White SparkLEDs
Pixel or Pixel Ring Controlled LEDs
Pixel Controlled SparkLEDs
5° - 77° Wide Zoom Range
Advanced Cooling Control Systems
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
7x 60W Osram™ Multi-Chip LEDs
28x 2W White SparkLEDs
8,000 Total Output Lumens
50,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
16,064 LUX 1,492 FC @ 16.4’ (5m) (Min. Zoom)
348 LUX 32 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Pixel or Pixel Ring Controlled LEDs
Pixel Controlled SparkLEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
RGBW Multi-Chip LEDs
White SparkLEDs
Variable Color Temperature (2,700K – 8,000K)
CONTROL / CONNECTIONS
3 DMX Channel Modes (25 / 52 / 80)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 25,000Hz)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out (Art-NET and sACN)
IP65 Locking Power Connector In/Out
SIZE / WEIGHT
Length: 14.3” (363mm)
Width: 10.2” (259mm)
Vertical Height: 19.4” (493mm)
Weight: 41.0 lbs. (18.6 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65 Specifications and documentation subject to change without notice.
INCLUDED ITEMS
2 Omega Brackets
IP65 Locking XLR Cable
IP65 Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1322000054 E Loader III
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
