FEATURES
Full Spectrum 800W RGBMA LED Engine
Precise dynamic whites from 2400 - 8500K
Instant color changes, Natural color transitions
Rich and intense primary colors
Dual Rotating and Fixed Gobos plus Animation Wheel
Iris, Prism, and Dual Frost
Wide Zoom Range from 7° to 53°
Large 140mm front aperture
SOURCE
800W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
21.000 Total Lumen Output
CRI 92
Zoom Range 7° - 53°
EFFECTS
Motorized Zoom
Dual Variable Frost Filter (Medium/ Wash)
4 Facet Round, 4 Facet Linear Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
1x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Rotating / Indexing Interchangeable Glass Gobos
1x 6 Fixed Glass Gobo
Animation Wheel
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 34/44) (CMY 32/40)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement

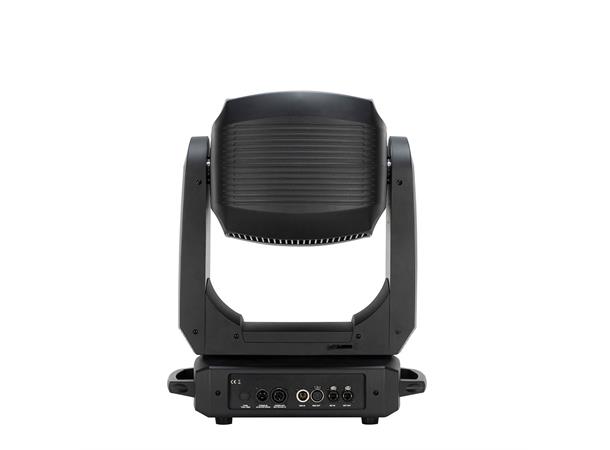

5pin DMX In/Out
Locking Ethernet In/Out
IP65 Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 462mm (18.19”)
Width: 540mm (21.26")
Vertical Height: 715mm (28.15")
Weight: 32.3kg (71.2 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1214W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
