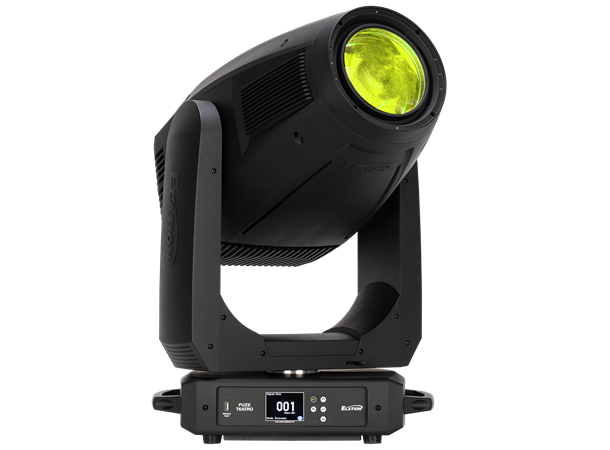

The FUZE TEATRO™ is a silent fanless full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications.
The 95 CRI engine utilizes an 480W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of up to 15,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

The FUZE TEATRO is designed for any application where a silent fully automated framing fixture with outstanding and compelling color range and quality is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.
Dual rotating gobo wheels, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.

Specifications

SOURCE


480W 6,500K RGBMA LED Engine

30,000 Hour Average LED Life*

 *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA

Total Lumen Output

  14890 (Integrating Sphere)

  13100 (Goniometer)

CRI 95.1


Zoom Range 7° - 50°

Beam Angle 6.8° - 50.5°

Field Angle 8.5° - 54.7°

ACOUSTICAL DATA

A-weighted sound power level

9dB(A) - Intensity 0%

19dB(A) - Intensity 100%

See Acoustic Test Report for additional fixture conditions

EFFECTS

Motorized Zoom

4 Rotating Full Blackout Framing Blades, +/- 60° Index

Dual Variable Frost Filter (Medium/ Wash)

4 Facet Round, 4 Facet Linear Prism

Motorized Iris

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

Pan Angle: 540° / 630°

Tilt Angle: 250°

Motionless Reset

COLOR

RGBMA Color Array

CMY Emulation

Variable CCT 2400K - 8500K

Green/Magenta Shift

Virtual Gel Swatch Book

GOBOS

2x 6 Rotating / Indexing Interchangeable Glass Gobos

Animation Wheel


CONTROL / CONNECTIONS

16-bit Pan, Tilt, and Dimming Control


DMX Adjustable LED Frequency

DMX, RDM, Art-NET, sACN Protocol Support

4 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

16 Bit Resolution Adjustable Movement

5pin DMX In/Out

Locking Ethernet In/Out


IP65 Locking Power In/Out

SIZE / WEIGHT

Length: 12.0 in (306mm)

Width: 18.2 in (462mm)

Height: 30.8 in (783mm)

Weight: 79.4 lbs. (36kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

725W Max Power Consumption

14°F to 113°F (-10°C to 45°C)

BTU/hr (+/- 10%) 2772.25

APPROVALS / RATINGS


CE | cETLus  | FCC | IP20
