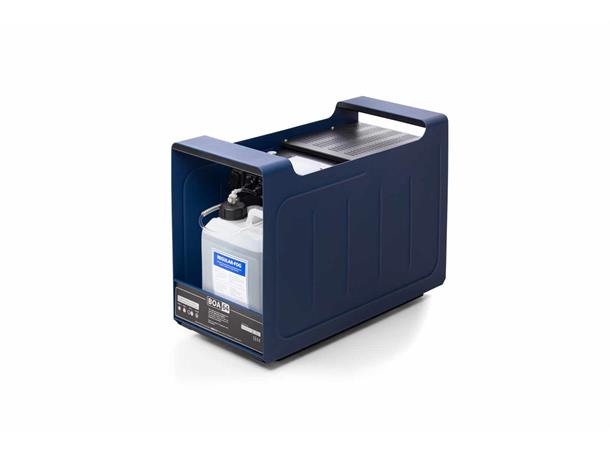

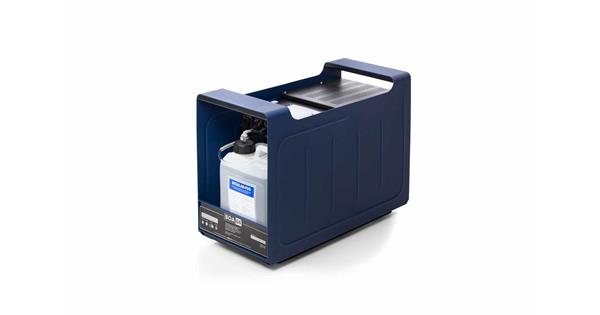

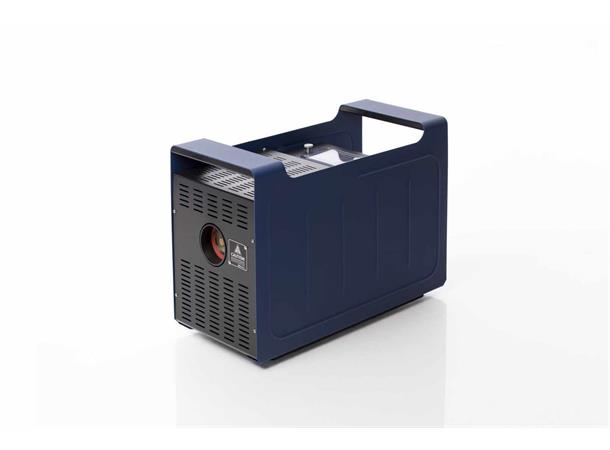

The outdoor fog generator

The Boa 64 is a powerful fog generator, that sets new Standards concerning noise and handling. It is dust-tight and protected against splashing water on all sides according to IP 64. The new Touchscreen makes the handling of the Boa 64 easy and intuitive. Operation via Ethernet and RDM-features allow most flexible use.

• New developed, extremely silent nozzle
• Two pumps for constant output

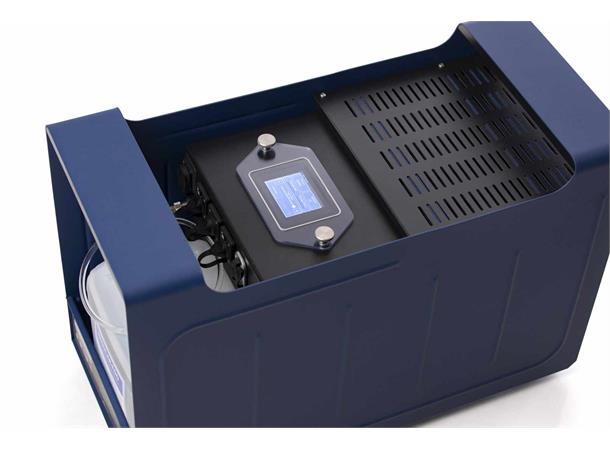

• New Touchscreen
• New control choises
• RDM-capable
• Finest adjustments of the output
• Adjustable pump characteristic
• Adjustable performance curve
• Internal timer
• Working hours counter
• Fluid detection
• Made in Germany

• Technical data

  ProcedureVaporizing fog generatorPower requirement3100 WattVoltage220 - 250 V/50 HzWarm up timeapprox. 15 min.Fluid consumption260 ml/min. at max. output, 46 ml/min. at continuous output (with Look Regular Fluid)Fluid tank capacity5 literFog outputadjustable in 100 steps of 1%Output projectionmax. 25 mFogging timeat max. output: Extended-Mode: approx. 55 sec., Impulse-Mode: approx. 22 sec., at < 30% output: Continuous outputTemperature controlMicroprocessor controlledOverheating protectionHeater block/Thermostat, Pump/Thermal switchControl0 - 10 V analog, DMX 512, Ethernet (Artnet, sACN)Dimensions (L x W x H)56.6 x 26 x 40 cmWeight32 kg incl. canister
