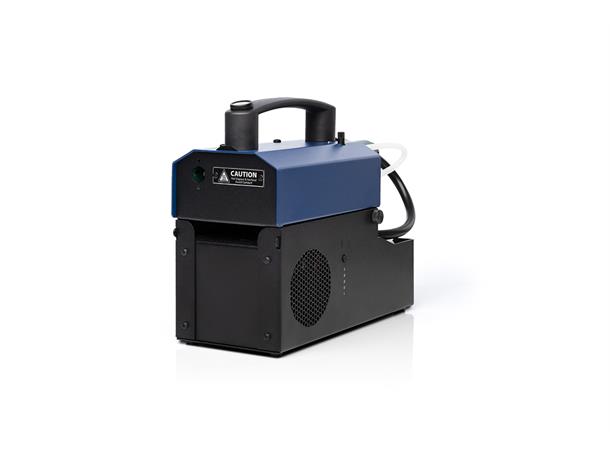

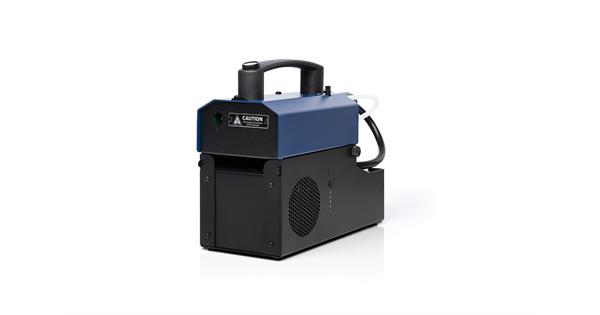

The Power Tiny is a 400 W, battery powered, handheld fog generator. It is the largest of the battery powered “Tiny” series. The Power Tiny’s size, variable output, wired, wireless and DMX controllability make it a very popular, compact effect solution. It comes with battery, charger, and a 250 ml bottle of Tiny Fluid.
Power Tiny Stand-Alone comes with 250 ml bottle of fluid and 250 ml fluid reservoir.
Overview
The Power-Tiny is the new battery-operated fog generator from Look Solutions. It completes the range of the off-mains operated machines (Tiny- Fogger and Tiny Compact) perfectly and fills the gap between high flexibility and powerful fog output. In the world of theatre, film, TV- and photogra- phers, musicals and special effects, air flow and air tightness testing – everywhere where fog is needed quickly and efficiently, the Power-Tiny is the perfect alternative to normal fog generators.
Portable use
- Heat-up time only one second
- Even lighter weight and smaller dimensions due to Li-Ion battery
- Adjustable output
- Reduced charging time (4 hrs)
- Charge indicator
- 250 hours stand-by time
- Continuous output
- Easy handling
- Control via start button or analog (0 - 12V) and with XLR-remote, radio remote, DMX-converter, Timer
- Minimal fluid consumption
- Easy change of the batterypack
- Made in Germany
Technical data
ProcedureVaporizing fog generatorPower requirement400 WattVoltage12 V with batteryWarm up time1 sec.Fluid consumption10 ml/min. at continuous outputFluid tank capacity250 mlFog outputadjustableFogging time12 min. continuous output or 150 x 5 sec. burstsTemperature controlMicroprocessor controlledControl0 - 10 V analogDimensions (L x W x H)22.3 x 10 x 19.5 cmWeight3.3 kg incl. batteryDelivery includesLi-Ion batterypack, Charger, Fluid tank 250 ml, 250 ml Tiny-Fluid
- Minimal fluid consumption
A special fluid ensures that dense fog is produced with the lowest of fluid consumption.
- Control
The Power-Tiny is equipped with a 3pin-XLR-socket for analog (0 – 10V) control. An XLR-remote as well as a wireless radio remote can be connected (both as an option).
With a DMX-converter (DMXit) the machine can be controlled via DMX 512.
With the optional Timer (TIMEit) a fog and wait time can be programmed in.
