Replay any show programmed by a Mantra Lite console or the Mantra offline editor with full programmable start and finish times. Controls up to 48 fixtures across two DMX Universes and stores up to 1000 shows in internal memory. Live console override allows any DMX lighting console to bypass the Mantra Mini during a live show.

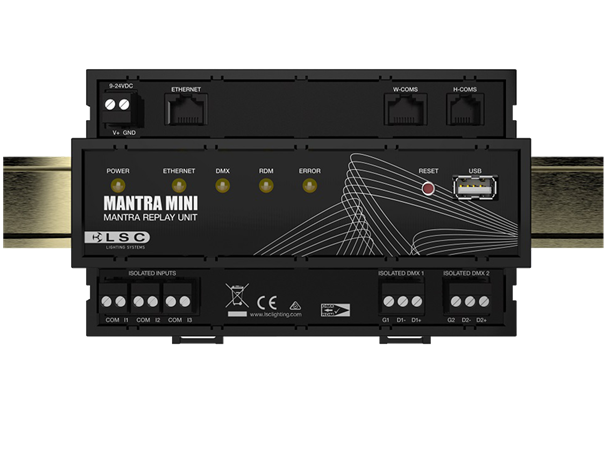

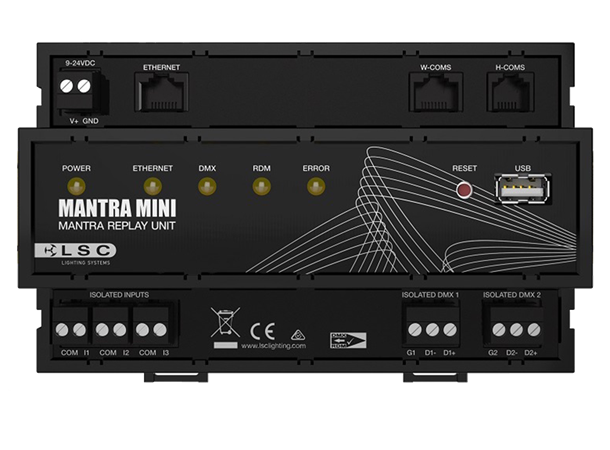

Designed for permanent installs, the Mantra Mini is housed in a 9-module wide, DINrail plastic housing. Utilising solid-state components, the Mantra Mini can be housed in tight situations such as locked equipment cabinets without the risk of overheating. Power can be supplied via PoE or by an external power source. Sensational performance from such a compact unit!

Great tool for automatic calculation of sunrise and sunset with configurable daylight saving time to switch venue lights on or off. Programmable time offset allows a user to switch lights on (e.g. sunset plus 30 minutes) and lights off (e.g. sunrise less one hour). Also ideal for programming venue or shop window lights to switch on at opening times and off at closing times.

Wi-Fi access point built-in for system configuration and editing via Mantra offline software. Stored memories can be recalled via remote wall plates or triggering over Ethernet via UDP and OSC. Three voltage-free contact closure trigger inputs are available for fire, emergency or playing cues. System configuration, monitoring and full logging is possible via LSC’s Houston X software or via RDM.

Specifications

control
up to 48 fixtures on 1024 DMX slots
up to 100 active simultaneous cues
massive memory – over 1000 shows can be stored internally
play default cues on power-up
status logging and reporting
remote app for Windows and MAC-based devices allowing loading, editing and storing of show information

inputs
DMX512 (1990) and DMX512-A (E1-11)
USB port for show data upload/backup and software upgrades
three isolated contact closure inputs via 2-pole plug-in screw terminals for fire, emergency or playing cues
live console override via Art-Net or sACN
UDP via Ethernet for third-party remote control

outputs
dual DMX512 outputs via two 3-pole plug-in screw terminals
Art-Net and sACN outputs via Ethernet connection
room linking via Ethernet, requires one Mantra Mini per room
expansion port for future proofing

power
PoE (via RJ45 Ethernet connector) or 9-24V DC (20W max) supply via 2-pole plug-in screw terminals (external power supply not included)

mechanicals
158mm (w) x 59mm (d) x 104mm (h)
weight: 350g
TS-35 DINrail-mount, high-strength, flame-retardant ABS plastic chassis
peace of mind
CE (European) and RCM (Australian) approved
two-year warranty
designed and manufactured in Australia by LSC – an Australian-owned company with over 40 years’ experience in developing world-first products
