ColorSpot 700E AT™ CMY and CTO colour mixing system

ColorSpot 700E AT™

CMY and CTO colour mixing system

Varenr: R10016201
5 000,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
1 på lager
BeskrivelseTeknisk infoSupport

1 i dobbelflight.

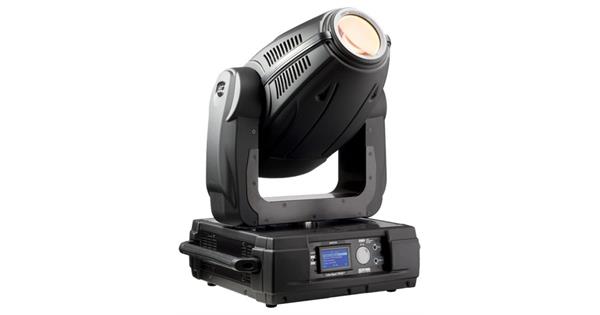

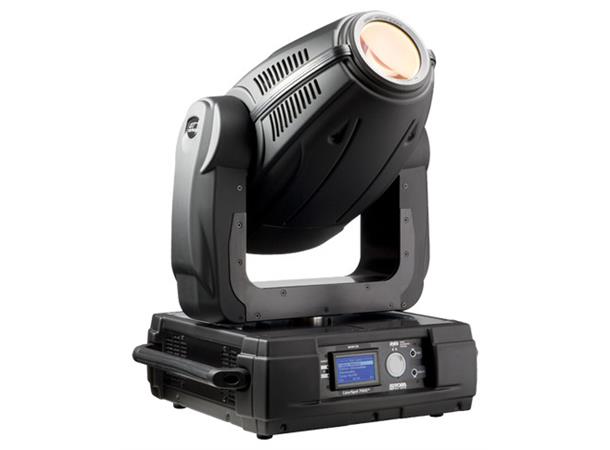

The ColorSpot 700E AT marks a new series of Robe 700 W movinghead fixtures. Featuring the MSR GOLD 700 FastFit lamp, it is ideal for all professional applications and installations. It also offers a full CMY and CTO colour mixing systems, a colour wheel with 7 replaceable ?SLOT&LOCK? dichroic filters; a static gobo wheel with 9 replaceable ?SLOT&LOCK? gobos and a rotating gobo wheel with 7 replaceable ?SLOT&LOCK? gobos; a replaceable animation wheel and a rotating 3-facet prism. The zoom range is 15° - 51° and there’s also dimmer, shutter, strobe effects.


Lamp: Compact high-presure metal halide lamp

Base: PGJX50

Approved model: Philips MSR Gold 700 FastFit

Control: Automatic and remote on/off

Ballast: Electronic

Optical system

Dichroic glass reflector for maximising the light efficiency

Beam angle: 15° - 51°

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 930 VA at 230 V/50 Hz

Mechanical specification

Height: 597 mm (23.5 ") - head in horizontal position

Width: 514 mm (20.2 ")

Depth: 499 mm (19.7 ")

Weight: 32 kg (70.6 lbs)

Fixation option: Pan/Tilt-lock mechanism

Thermal specification

Maximum ambient temperature: 40 °C (104 °F)

Maximum surface temperature: 120 °C (248 °F)

Static gobos

Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm

Rotating gobos

Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass

Control and programming

Setting & Addressing: ROBE Navigation System (RNS)

Protocol: USITT DMX-512, RDM support

Control channels: 26, 28, 31, 34 or 36 5 DMX protocol modes

3-editable programs, each up to 99 steps

Stand-alone operation

Display: Blue/white LCD graphic

Pan/Tilt resolution: 16bit

Movement control: Tracking and vector

Colour wheel positioning: 8 or 16bit

Static gobo wheel positioning: 8 or 16bit

Rotating gobos: 8 or 16bit

Iris: 8 or 16bit

Frost: 8 or 16bit

Zoom: 8 or 16bit

Dimmer: 8 or 16bit

Ethernet port: Art-Net protocol, ready for ACN

Data in/out: Locking 3-pin & 5-pin XLR

Built-in analyser for easy fault finding

Electromechanical effects

Cyan: 0-100%

Magenta: 0-100%


CTO: 0-100%

Colour wheel: 7 replaceable ?SLOT&LOCK? dichroic filters + open

Static Gobo wheel: 9 replaceable ?SLOT&LOCK? gobos + open

Rotating Gobo wheel: 7 rotating, indexable, replaceable ?SLOT&LOCK? glass gobos + open

Animation wheel: Replaceable, variable rotation angle,continuous rotation in both directions at different speeds

Iris: Motorized, stepless

Prism: 3-facet indexable prism rotating in both directions at different speeds

Frost effect: Separate, variable

Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing “ZAP”

Motorized zoom and focus

Pan: 540°

Tilt: 280°


Mounting points: 4 pairs of ¼-turn locks

2 x Omega bracket with ¼-turn quick locks

Safety chain/rope attachment point

Optional accessories

Remote Control IR

Animation Wheels
