ColorWash 700E AT™ Dichroic glass reflector

ColorWash 700E AT™

Dichroic glass reflector

Varenr: R10026201
5 000,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
2 på lager
BeskrivelseTeknisk infoSupport

Dobbelflight følger med!

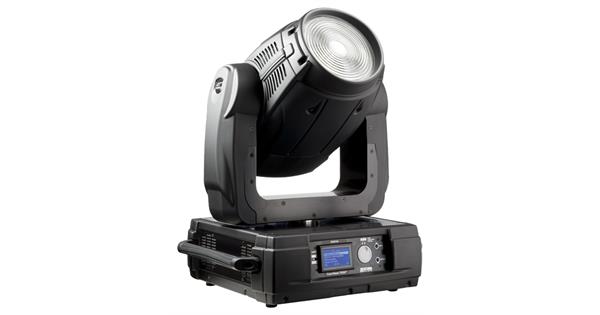

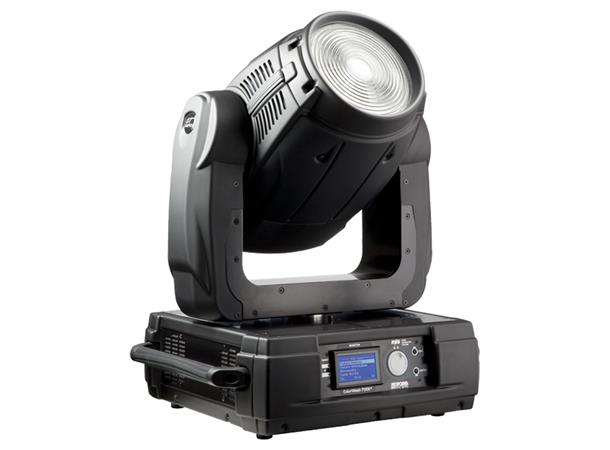

The ColorWash 700E AT is the first Wash fixture using the MSR GOLD 700 FastFit lamp in the Robe range. This powerful moving head offers a full CMY + CTO colour mixing system, a colour wheel with 7 replaceable ?SLOT&LOCK? dichroic filters, a rotating beam shaper and a linear zoom range of 6° - 45°.


Lamp: Compact high-presure metal halide lamp

Base: PGJX50

Approved model: Philips MSR Gold 700 FastFit

Control: Automatic and remote on/off

Ballast: Electronic

Optical system

Dichroic glass reflector for maximising the light efficiency

Front Fresnel lens of diameter of 200 mm

Beam angle: 6° - 45°

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz Power consumption: 890 VA at 230 V/50 Hz

Mechanical specification

Height: 597 mm (23.5 ") - head in horizontal position

Width: 514 mm (20.2 ")

Depth: 499 mm (19.7 ")

Weight: 30.4 kg (67 lbs)

Fixation option: Pan/Tilt-lock mechanism

Thermal specification

Maximum ambient temperature: 40 °C (104 °F)

Maximum surface temperature: 120 °C (248 °F)

Control and programming

Setting & Addressing: ROBE Navigation System (RNS)

Protocol: USITT DMX-512, RDM support

Control channels: 18, 20, 21, 22, 23, 24 6 DMX protocol modes

3-editable programs, each up to 99 steps

Stand-alone operation

Display: Blue/white LCD graphic

Pan/Tilt resolution: 16bit

Movement control: Tracking and vector

Colour wheel positioning: 8 or 16bit

Beam shaper: 8 or 16bit

Zoom: 8 or 16bit

Dimmer: 8 or 16bit

Ethernet port: Art-Net protocol, ready for ACN

Data in/out: Locking 3-pin & 5-pin XLR

Built-in analyser for easy fault finding

Electromechanical effects

yan: 0-100%

Magenta: 0-100%

Yellow: 0-100%

CTO: 0-100%

Colour wheel: 7 replaceable ?SLOT&LOCK? dichroic filters + open

Beam shaper: Indexable, continuous rotation in both directions at different speeds

Dimmer/Shutter: Full range dimming and variable strobe effect, electronic strobbing ?ZAP? Motorized zoom

Pan: 540°

Tilt: 280°


Mounting points: 4 pairs of ¼-turn locks

2x Omega bracket with ¼-turn quick locks

Safety chain/rope attachment point

Optional accessories

Module of front wide-angle lens D200

Remote Control IR

Top Hats
