Deep sea doesn’t mean “deep look“ …

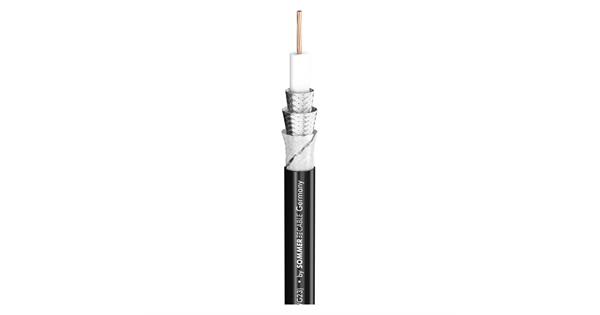

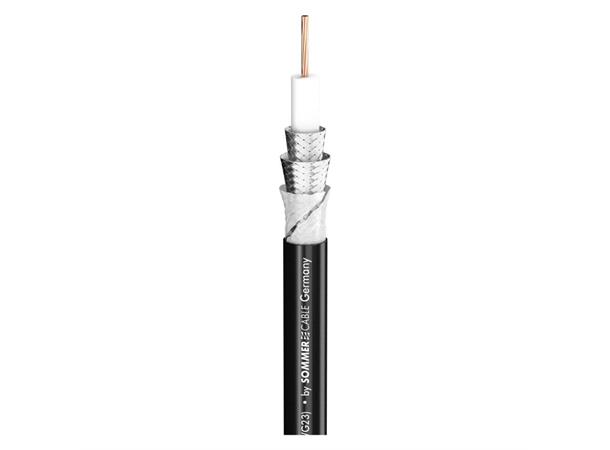

Because the loss-free video transmission in deep water is not only a true challenge for the diver, but also for a cable. The 0.88 mm²/ version is the HD-SDI variant of the AQUA MARINEX 0.6L/3.7, yet with a gas-injected insulation and a double shielding for high-resolution Full-HD image formats and longer transmission paths. It can be used for permanent underwater installations down to a water depth of 50 m 164 ft.), where it withstands plenty of attacks by small water animals and excess high water pressure. Due to its unbalanced construction the SC-AQUA MARINEX VIDEO 1.2L/4.8 may also be serve as an instrument lead or AF phono cable. It has a black, UV-resistant outer jacket which can be easily painted over using wall paint without affecting its functionality or finish.
Advantages:
- Solid outer jacket and double Cu mesh screen
- Reelable and high number of bending cycles
- Useable in great water depths
- Cold-flexible due to special HD-PUR jacket
- No-compromise mechanical and electrical line quality
- Useable with common 1.2/4.8 BNC connectors
Application:
- HD-SDI video cable for permanent installation in boat-building, tunnel construction or in sport arenas
- Flexible HD-SDI video cable as camera supply line with dive sessions
- High-quality phono/audio line for AF transmission
- High-resolution picture transmission e.g. for use in sediment technology
| Article number: | 605-0241AQ |
|---|
| Name: | SC-AQUA MARINEX VIDEO 1.2L/4.8 |
|---|
| EAN: | 4049371194471 |
|---|
| Properties: | Analog, Digital 75 O, HDTV, Halogen-free / LSZH, PUR, SDI, Underwater / submerged |
|---|
| Application area: | Aqua, ELA 100 V, Installation, Mobile outdoor / indoor, Stage / live |
|---|
| Application: | video cable |
|---|
| Colour: | black |
|---|
| Jacket material: | PUR-SR |
|---|
| Jacket Ø [mm]: | 7,40 |
|---|
| Jacket Ø ["]: | 0.2913 |
|---|
| Number of Channels (video): | 1 |
|---|
| Inner conductor: | 1 |
|---|
| Inner conductor (video): | 1 |
|---|
| Inner conductor (video) [mm²]: | 0,88 |
|---|
| Inner conductor (video) [sqin]: | 0.0014 |
|---|
| Inner conductor Ø (video) [mm]: | 1,06 |
|---|
| Inner conductor Ø (video) ["]: | 0.0417 |
|---|
| AWG (video): | 18 |
|---|
| Shielding: | 2 x Copper braiding + special protective banding |
|---|
| Shielding factor [%]: | 90 |
|---|
| Copper strands (video): | 7 |
|---|
| Copper strand Ø (video) [mm]: | 0,40 |
|---|
| Copper strand Ø (video) ["]: | 0.0157 |
|---|
| Conductor insulation material: | PO |
|---|
| Conductor insulation Ø [mm]: | 4,80 |
|---|
| Conductor insulation Ø ["]: | 0.189 |
|---|
| Weight per 1 m [g]: | 81 |
|---|
| Weight at 1000 ft. [lbs]: | 54.5062 |
|---|
| UV-resistant: | yes |
|---|
| Fire load per m [kWh]: | 0,38 |
|---|
| Style variant: | round |
|---|
| Packing: | bulk stock |
|---|
| Temperature min. [°C]: | -40 |
|---|
| Temperature max. [°C]: | 80 |
|---|
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m]: | 141 |
|---|
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft]: | 462.5984 |
|---|
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m]: | 96 |
|---|
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft]: | 314.9606 |
|---|
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m]: | 62 |
|---|
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft]: | 203,4121 |
|---|
| Width [mm]: | 7,4 |
|---|
| Width ["]: | 0.2913 |
|---|
| Height [mm]: | 7,4 |
|---|
| Height ["]: | 0.2913 |
|---|
| Capacity wire/electic screen at 1m (video) [pF]: | 52 |
|---|
| Capacity wire/electic screen at 1 ft. (video) [pF]: | 15.8496 |
|---|
| Damping at 200 MHz (100m & 20° C) [dB]: | 9,3 |
|---|
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB]: | 2.8346 |
|---|
| Damping at 470 MHz (100m & 20° C) [dB]: | 14,2 |
|---|
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB]: | 4.3282 |
|---|
| Damping at 862 MHz (100m & 20° C) [dB]: | 21 |
|---|
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB]: | 6.4008 |
|---|
| Damping at 1000 MHz (100m & 20° C) [dB]: | 23 |
|---|
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB]: | 7.0104 |
|---|
| Damping at 1485 MHz (100m & 20° C) [dB]: | 28,1 |
|---|
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB]: | 8.5649 |
|---|
| Damping at 1750 MHz (100m & 20° C) [dB]: | 30,3 |
|---|
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB]: | 9.2354 |
|---|
| Damping at 2150 MHz (100m & 20° C) [dB]: | 34 |
|---|
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB]: | 10.3632 |
|---|
| Damping at 3000 MHz (100m & 20° C) [dB]: | 41,6 |
|---|
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB]: | 12.6797 |
|---|
| Impedance [O]: | 75 |
|---|
| Conductor resistance per 1 km [O]: | 23 |
|---|
| Conductor resistance per 1000 ft. [O]: | 7.0104 |
|---|
| Shield. resistance per 1 km [O]: | 4,95 |
|---|
| Shield. resistance per 1000 ft. [O]: | 1.5088 |
|---|
| BPVo-Euroclass: | Fca |
|---|
