SC-SOURCE Microphonc. / sort Nøytral og nøyaktig overføring.

SC-SOURCE Microphonc. / sort

Nøytral og nøyaktig overføring.

Varenr: 200-0101
22,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
FargeSort
SC-SOURCE Microphonc. / sort Nøytral og nøyaktig overføring.
SC-SOURCE Microphonc. /rød Nøytral og nøyaktig overføring.
SC-SOURCE Microphonc. / blå Nøytral og nøyaktig overføring.
Materiale
Vis varianter som liste
-+
100+ på lager
BeskrivelseTeknisk infoSupport
Beskrivelse

The hymns of praise by cable...

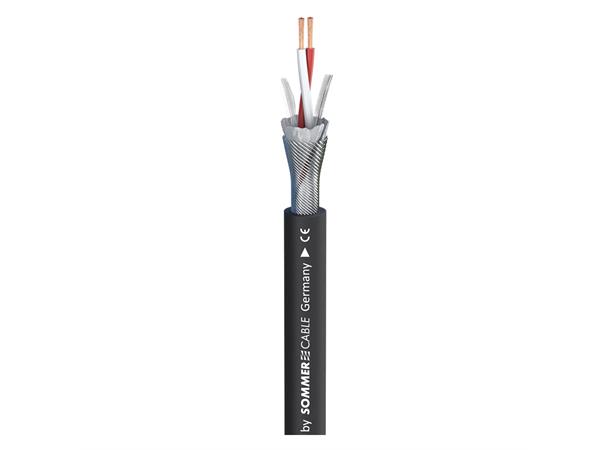

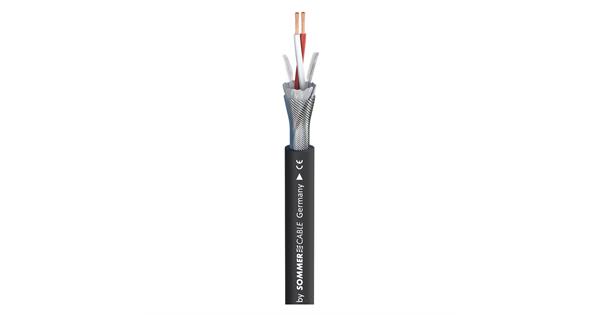

Specialists make this cable a top seller. This microphone cable was originally developed for the makers of studio microphones like BPM and Schoeps. Their high quality standards helped us produce a professional and yet affordable studio microphone cable. SC-Source MKII is 100 % shielded by a tight Cu braid and a robust fleece woven around the wire pairs. The fleece is vaporized on both sides with a conductive aluminum coating. This ensures that even with heavy-duty use the 100 % shielding remains unchanged. This cable should be used where electric sources can affect the audio and data transfer. Cables with comparable electrical values cost almost twice as much with other manufacturers! Due to the fine 0,05 mm Cu wires it is a very popular cable for outdoor transmissions and mobile applications.

Advantages:

  • Neutral and loss-free audio transmission due to special copper strand design
  • 100 % shielding due to dense helical copper mesh screen plus extra AL fleece/AL foil
  • Professional technology at a budget price
  • Available in a notch- and cold-resistant PUR version

Application:

  • Professional studio and microphone technology
  • Outdoor transmission/OB van
  • Permanent stage application
Teknisk info

Produktinformasjon

Application Microphone Cable
Application area
  • ELA 100 V
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
  • Studio / Broadcast
AWG (audio) 23
BPVo-Euroclass Fca
Capac. cond./cond. per 1 m (audio) 60 pF
Capac. cond./shield. per 1 m (audio) 110 pF
Colour black
Colour detailed black
Conductor insulation material PE
Conductor insulation Ø 1,55 mm
Conductor resistance per 1 km 78 Ohm
Copper strand Ø (audio) 0,05 mm
Copper strands (audio) 128
Farge Sort
Fire load per m 0,21 kWh
Height 6,5 mm
Inner conductor (audio) 0,25 mm²
Inner conductor Ø (audio) 0,56 mm
Insulation resist. per 1 km 0,2 G Ohm
Insulation resist. per 1 km (audio) 0,2 G Ohm
Jacket material PVC
Jacket Ø 6,5 mm
Materiale PVC
Number of Channels (audio) 1
Packing
  • 100 m spool
  • 500 m spool
Properties
  • Analog
  • OFC oxygen free copper
Shield. resistance per 1 km 25 Ohm
Shielding copper spiral sleeve tin-plated 95 % + AL-fleece
Shielding factor 1
Signal transmission symmetrical
Style variant round
Temperature max. 70 °C
Temperature min. -25 °C
Type Mikrofonkabel
UV-resistant Yes
Weight per 1 m 48 g
Width 6,5 mm
