TriCone Instrumentcable bl Sterk instrumentkabel.

TriCone Instrumentcable bl

Sterk instrumentkabel.

Varenr: 300-0022
15,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
FargeBlå
TriCone Instrumentcable sort Sterk instrumentkabel.
TriCone Instrumentcable rød Sterk instrumentkabel.
TriCone Instrumentcable bl Sterk instrumentkabel.
TriCone Instrumentcable gn Sterk instrumentkabel.
TriCone Instrumentcable sort Sterk instrumentkabel.
Materiale
Vis varianter som liste
-+
20+ på lager
BeskrivelseTeknisk infoSupport
Beskrivelse

String artists...

will be delighted at this cable.

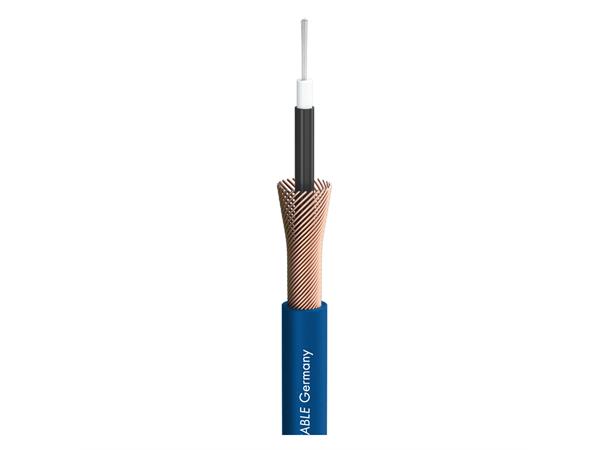

The Tricone® MKII is a flexible cable for guitar or keyboard and equally interesting for the live musician, studio keyboarder and the home recorder. Because of its decent wire gauge of 0,22 mm² and the fine single 0,10 mm wires, it is protected against cable break and convinces with high bending cycles. It is very robust, easy to reel and very reasonably priced. When making cables, care should be taken to remove the conductive shielding (black PVC hose) from the insulation so that it won’t touch the inner conductor.

Tricone® MKII is a protected and registered trademark of SOMMER CABLE GmbH.

Advantages:

  • Very robust due to the large wire cross-section and fine Cu single wires
  • Good electrical values due to the Skin PE insulation
  • 100 % protection by dual shielding (helical copper mesh screen + conductive carbon screen)
  • High number of bending cycles

Application:

  • Dependable cable for live applications (guitar and keyboard)
  • Economy-priced Line-in or Patchcable for the Homerecorder
Teknisk info

Produktinformasjon

Application Instrument Cable
Application area
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
AWG (audio) 24
BPVo-Euroclass Fca
Capac. cond./shield. per 1 m (audio) 85 pF
Colour blue
Colour detailed blue
Conductor insulation material Foam/Skin-PE
Conductor insulation Ø 1,8 mm
Conductor resistance per 1 km 90 Ohm
Copper strand Ø (audio) 0,10 mm
Copper strands (audio) 28
Farge Blå
Fire load per m 0,26 kWh
Height 5,9 mm
Inner conductor (audio)
  • 0,22 mm²
  • 1
Insulation resist. per 1 km 1 G Ohm
Insulation resist. per 1 km (audio) 1 G Ohm
Jacket material PVC
Jacket Ø 5,9 mm
Materiale PVC
Number of Channels (audio) 1
Packing
  • 100 m spool
  • 500 m spool
Properties
  • Analog
  • OFC oxygen free copper
Shielding Copper braided shielding + semiconductor
Shielding factor 1
Signal transmission asymmetrical
Style variant round
Temperature max. 60 °C
Temperature min. -25 °C
Weight per 1 m 42 g
Width 5,9 mm
