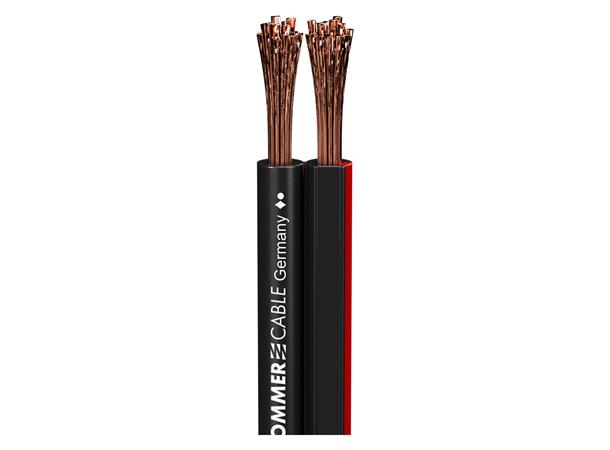

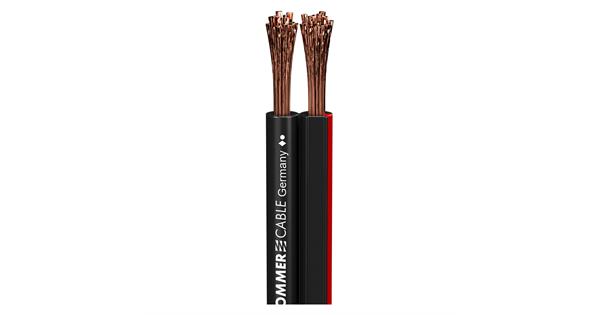

SC-NYFAZ Speakerkabel 2x4,0 qmm, sort Fin til installasjon.

SC-NYFAZ Speakerkabel 2x4,0 qmm, sort

Fin til installasjon.

Varenr: 420-0400-SW
57,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

RAZZMATAZZ - NYFAZ...

SC-Nyfaz cables are primarily used for interior wiring of all types of electrical appliances. They are often used in audio components such as loudspeakers, effects units, in wireless technology, gambling machines, for fast wiring of prototypes and new developments etc., wherever flexibility is less important, but a low price matters.
We deliver a durable and reliable quality with oxygen-free copper (99.96 %).

Advantages:

  • Unflashy colouring
  • Good & reasonably priced
  • Easy handling
  • “Memory“-effect, easy to install

Application:

  • Development and fast wiring of prototypes
  • Fixed installation in dry and closed buildings
  • Interior wiring in electrical devices
Teknisk info

Produktinformasjon

Application Installation cable
Application area
  • ELA 100 V
  • Installation
AWG (audio) 11
BPVo-Euroclass Fca
Capac. cond./cond. per 1 m (audio) 160 pF
Colour black
Colour detailed black
Copper strand Ø (audio) 0,15 mm
Copper strands (audio) 226
Farge Sort
Height 4,4 mm
Inner conductor (audio)
  • 2
  • 4 mm²
Inner conductor Ø (audio) 2,26 mm
Insulation resist. per 1 km 0,02 G Ohm
Insulation resist. per 1 km (audio) 0,02 G Ohm
Jacket material PVC
Number of Channels (audio) 1
Packing
  • 100 m spool
  • 500 m spool
Properties Analog
Style variant twin
Temperature max. 70 °C
Temperature min. -20 °C
Tverrsnitt 2 x 4.0 mm²
UV-resistant Yes
Width 10,2 mm
