MERIDIAN SP225 Speaker./ hvit

Club og sal, tåler mye bruk.

Varenr: 425-0050
30,-eks. mva
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

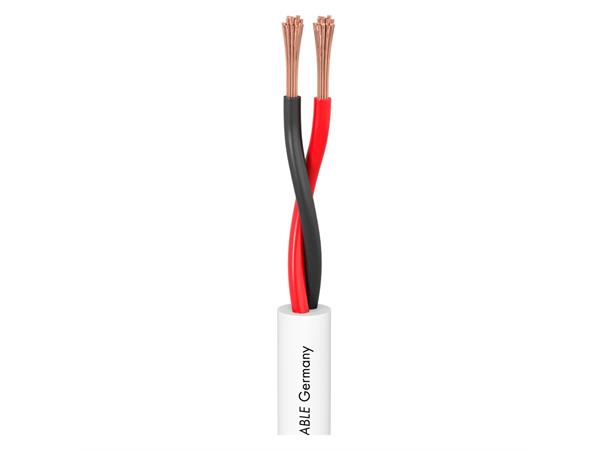

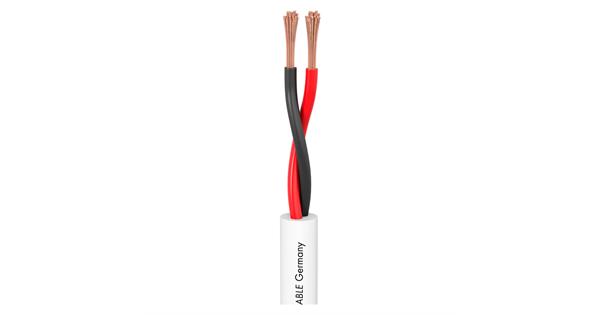

Speaker Cable Meridian Mobile SP225; 2 x 2,50 mm²; PVC Ø 7,80 mm; white
Teknisk info

Produktinformasjon

Application Speaker Cable
Application area
  • ELA 100 V
  • Mobile outdoor / indoor
  • Stage / live
  • Studio / Broadcast
AWG (audio) 13
BPVo-Euroclass Fca
Capac. cond./cond. per 1 m (audio) 136 pF
Colour white
Colour detailed white
Conductor insulation Ø 3,05 mm
Conductor resistance per 1 km 7,5 Ohm
Copper strand Ø (audio) 0,15 mm
Copper strands (audio) 140
Farge Hvit
Fire load per m 0,33 kWh
Height 7,8 mm
Inner conductor (audio)
  • 2
  • 2,5 mm²
Insulation resist. per 1 km 0,005 G Ohm
Insulation resist. per 1 km (audio) 0,005 G Ohm
Jacket material PVC
Jacket Ø 7,8 mm
Number of Channels (audio) 1
Packing
  • 100 m spool
  • 500 m spool
Produsent Sommer Cable
Properties
  • Analog
  • OFC oxygen free copper
Style variant round
Temperature max. 70 °C
Temperature min. -30 °C
Tverrsnitt 2 x 2.5 mm²
Weight per 1 m 106 g
Width 7,8 mm
