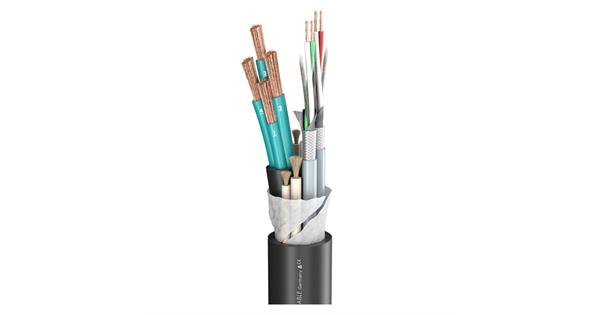

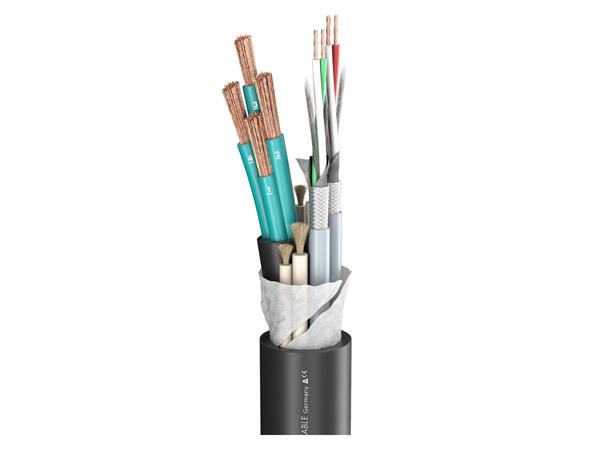

SC-ELEPHANT ROBUST Special cable for subwoofer systems

SC-ELEPHANT ROBUST

Special cable for subwoofer systems

Varenr: 490-0151-442
228,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (12 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse
Article number 490-0151-442
Name SC-ELEPHANT ROBUST DMX
EAN 4049371468695
Brand Sommer cable
Properties Analog
Properties OFC oxygen free copper
Properties Digital 110 Ω
Application area Stage / live
Application area Installation
Application Special cable for subwoofer systems
Colour black
Jacket material PVC
Jacket material (audio) PVC
Jacket material (AES/EBU, DMX) PVC, flame-retardant
Jacket Ø [mm] 19,50
Jacket Ø (AES/EBU, DMX) [mm] 4,30
Number of Channels (audio) 1
Number of Channels (AES/EBU, DMX) 2
Inner conductor (audio) 4
Inner conductor (AES/EBU, DMX) 2
Inner conductor (audio) [mm²] 4,00
Inner conductor (AES/EBU, DMX) [mm²] 0,22
AWG (audio) 11
AWG (AES/EBU, DMX) 24
Shielding (AES/EBU, DMX) AL/PT foil + Cu braid, tinned
Shielding factor [%] 100
Copper strands (audio) 126
Copper strands (AES/EBU, DMX) 7
Copper strand Ø (audio) [mm] 0,20
Copper strand Ø (AES/EBU, DMX) [mm] 0,20
Wire insulation material (audio) PVC
Conductor insulation material (AES/EBU, DMX) PE
Conductor insulation Ø (audio) [mm] 4,00
Conductor insulation Ø (AES/EBU, DMX) [mm] 1,50
Weight per 1 m [g] 500
UV-resistant yes
Style variant round
Packing Bulk Cable
Temperature min. [°C] -25
Temperature max. [°C] 70
Width [mm] 19,5
[mm] 19,5
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 45
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 77
Surge impedance (AES/EBU, DMX) [Ω] 110
Insulation resist. per 1 km (audio) [GΩ] 0,15
Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 5
Conductor resistance per 1 km (audio) [Ω] 4,95
Conductor resistance per 1 km (AES/EBU, DMX) [Ω] 90
Old article number 999-0001-473
