MONOLITH 4 DMX-Combo./ sort3x2,50mm² + DMX og strøm hybrid

MONOLITH 4 DMX-Combo./ sort3x2,50mm² +

DMX og strøm hybrid

Varenr: 500-0281-4
210,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Kanaler4xDMX+POWER
MONOLITH 2 DMX-Combo./ sort3x2,50mm² + DMX og strøm hybrid
MONOLITH 4 DMX-Combo./ sort3x2,50mm² + DMX og strøm hybrid
DMX-Combo. MONOLITH 8/ sort3x2,50mm² + DMX og strøm hybrid
Materiale
PVC
Vis varianter som liste
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport

Har du husket:

Beskrivelse

When the lights begin to dance...

the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices.

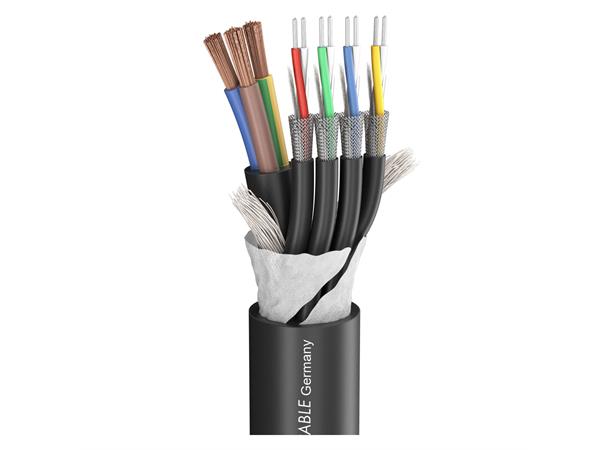

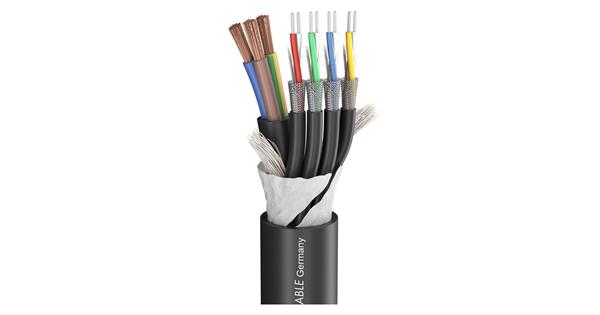

The SC-Monolith 4 HV POWER/DMX consists of a 3 x 2,50 mm² power cable and four DMX 512 lines. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety.

Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.

Advantages:

  • Parallel control for lighting boards through one cable via power line and DMX signal
  • Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
  • Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding

Application:

  • Control line for DMX lighting consoles (wave impedance of 0 Ω)
  • Analogue + digital audio multipair with power supply
Teknisk info

Produktinformasjon

Application DMX & Power
Application area
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
  • Studio / Broadcast
AWG (power) 13
BPVo-Euroclass Fca
Capac. cond./cond. per 1 m (AES/EBU, DMX) 52 pF
Capac. cond./shield. per 1 m (AES/EBU, DMX) 89 pF
Colour black
Colour detailed black
Conductor insulation Ø (power) 3,1 mm
Conductor resistance per 1 km (power) 80 Ohm
Copper strand Ø (AES/EBU, DMX) 0,20 mm
Copper strand Ø (power) 0,25 mm
Copper strands (AES/EBU, DMX) 7
Copper strands (power) 48
Fire load per m 1,24 kWh
Height 18 mm
Inner conductor (AES/EBU, DMX)
  • 0,25 mm²
  • 2
Inner conductor (power)
  • 2,5 mm²
  • 3
Inner conductor Ø (AES/EBU, DMX) 0,56 mm
Inner conductor Ø (power) 1,78 mm
Jacket material PVC
Jacket Ø 18 mm
Jacket Ø (AES/EBU, DMX) 4,3 mm
Kanaler 4xDMX+POWER
Materiale PVC
Name SC-Monolith 4 HV
Number of Channels (AES/EBU, DMX) 4
Number of Channels (power) 1
Packing bulk stock
Properties
  • Analog
  • Digital 110 Ohm AES / EBU
  • OFC oxygen free copper
Shielding (AES/EBU, DMX) Braided mesh, tin-plated
Shielding factor 0,9
Signal transmission symmetrical
Style variant round
Temperature max. 70 °C
Temperature min. -30 °C
Type AES/EBU DMX512
UV-resistant Yes
Weight per 1 m 376 g
Width 18 mm
Wire insulation material (power) PVC
