Application
|
Patch cable
|
|
Application area
|
Installation
|
|
Article number
|
500-0406
|
|
AWG (audio)
|
24
|
|
BPVo-Euroclass
|
Fca
|
|
Capac. cond./cond. per 1 m (audio)
|
74
|
|
Capac. cond./shield. per 1 m (audio)
|
143
|
|
Capacity wire/electic screen at 1 ft. (audio)
|
43,5864
|
|
Capacity wire/wire at 1 ft. (audio)
|
22,5552
|
|
Colour
|
grey
|
|
Colour detailed
|
grey
|
|
Conductor insulation material
|
PP
|
|
Conductor insulation Ø
|
1,3
|
|
Conductor resistance per 1 km
|
88
|
|
Conductor resistance per 1000 ft.
|
26,8224
|
|
Construction
|
(2LI2Y0,22mm²)(ST)Y
|
|
Copper strand Ø (audio)
|
0,2
|
|
Copper strands (audio)
|
7
|
|
Farge
|
Grå
|
|
Fire load per m [kWh]
|
0,05
|
|
Height
|
3,3
|
|
Impedance
|
110
|
|
Inner conductor (audio)
|
|
|
Inner conductor Ø (audio)
|
0,53
|
|
Insulation resist. per 1 km (audio) [GOhm]
|
0,2
|
|
Insulation resist. per 1 km [GOhm]
|
0,2
|
|
Insulation resist. per 1000 feet (audio) [GOhm]
|
0,061
|
|
Insulation resist. per 1000 feet [GOhm]
|
0,061
|
|
Jacket material
|
PVC
|
|
Jacket Ø
|
3,3
|
|
Materiale
|
PVC
|
|

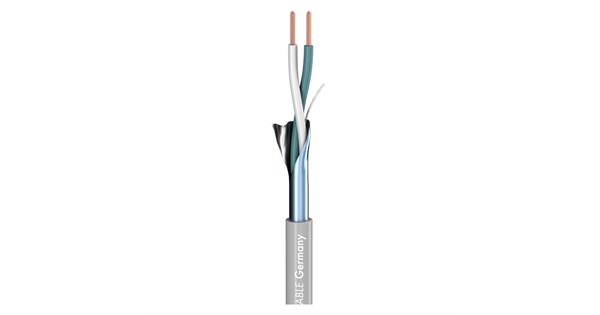

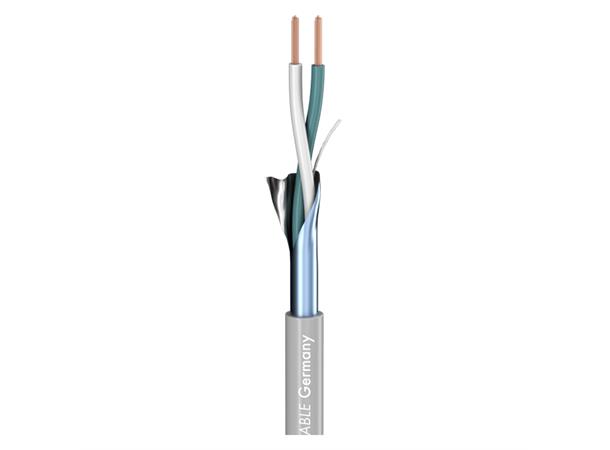

Name
|
SC-Isopod SO-F22
|
|
Number of Channels (audio)
|
1
|
|
Packing
|
200 m spool
|
|
Properties
|
- Analog
- Digital 110 Ohm AES / EBU
- OFC oxygen free copper
|
|
Shield. resistance per 1 km
|
75
|
|
Shield. resistance per 1000 ft.
|
22,86
|
|
Shielding
|
AL / PT foil + AL / PT foil + filler strand, tin-plated
|
|
Shielding factor [%]
|
100
|
|
Signal transmission
|
symmetrical
|
|
Style variant
|
round
|
|
Surge impedance (audio)
|
110
|
|
Temperature max. [°C]
|
70
|
|
Temperature min. [°C]
|
-25
|
|
Weight per 1 m [g]
|
16
|
|
Width
|
3,3
|
