SC-MERCATOR CAT.6 PUR SUPERFLEX

Nettverk CAT 6 PUR kabel.

Varenr: 580-0201
51,-eks. mva
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

CATlike agility and mobility...

The SC-Mercator CAT.6 SUPERFLEX is the ideal cable for mobile outdoor transmissions of digital audio or network signals, e.g. for use in the OB van.

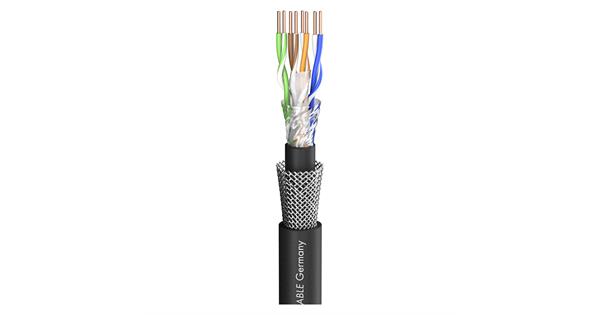

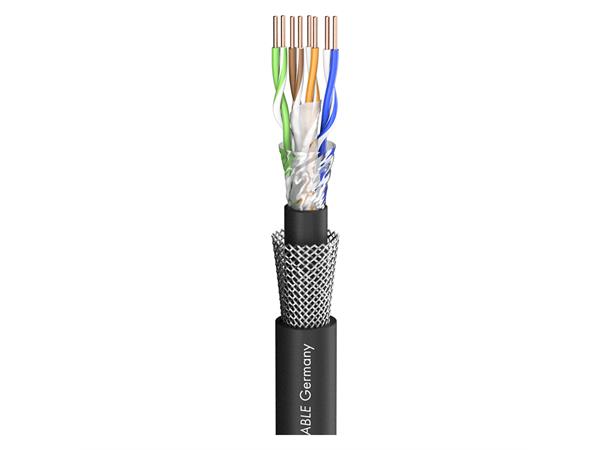

The double-jacket design results in an unprecedented flexibility. The outer jacket is made of an extremely notch and tread resistant and also cold flexible PUR compound, whereas the inner jacket consists of a highly flexible S-PVC. Between the two jackets is a braided shield of tin-plated copper. This construction makes the cable extremely flexible and very easy to reel.

For AoIP transmission lengths > 75m we recommend our multimode and singlemode fiber systems with the connectors HI-FIBER4, FIBERLENS and opticalCON®.

Advantages:

  • Safe data transfer due to high-quality insulation and shielding
  • Great durability due to a special, extremely robust jacket compound
  • Resistant to outdoor temperatures
  • easy to wind

Miscellaneous:

  • Ultra flexible and easy-to-reel network cable with a large wire cross-section for outdoor applications.
  • Outstanding network performance also for cable lengths >100 m (328 ft.).
  • Double-jacket construction: The outer jacket is made of an extremely notch and tread resistant and also cold flexible PUR compound, whereas the inner jacket consists of a highly flexible S-PVC. Between the two jackets is a braided shield of tin-plated copper with >80 % coverage.
  • Great durability due to a special, extremely robust jacket compound

Application:

  • For mobile OB van use and outdoor applications
  • For mobile sound, light or video transmissions
  • For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions



Teknisk info

Produktinformasjon

Application Cat.6
Application area
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
AWG (network) 23
BPVo-Euroclass Fca
Capacity wire/wire at 1m (network) [pF] 76
CAT-Type CAT.6
Colour black
Colour detailed black
Conductor insulation material Foam / Skin-PE

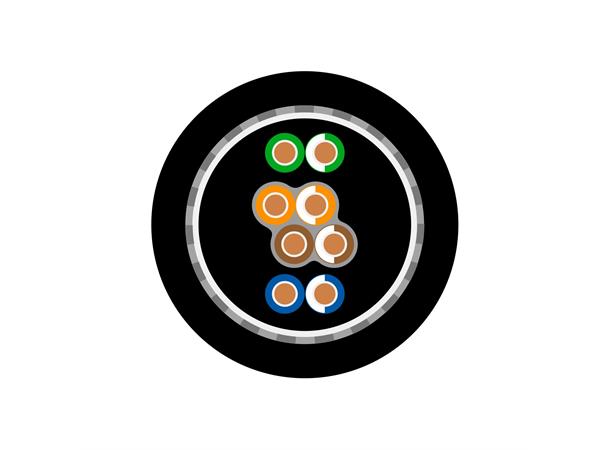

Construction S/UTP 4x2x0.57 mm
Construction (network) S/UTP 4x2x0.57 mm
Copper strand Ø (network) [mm] 0,57
Copper strands (network) 1
Farge Sort
Fire load per m [kWh] 0,24
Height [mm] 8
Impedance 100 Ohm
Inner conductor (network) 8
Inner conductor (network) [mm²] 0,26
Insulation resist. per 1 km 2 G Ohm
Jacket material PUR
Jacket material (network) PVC
Jacket Ø (network) [mm] 6,2
Jacket Ø [mm] 8
Materiale PUR
Number of Channels (network) 1
Packing
  • 100 m spool
  • 500 m spool
Produsent Sommer Cable
Properties
  • FRNC flame retardant
  • Halogen-free / LSZH
  • OFC oxygen free copper
  • PUR
Shielding Copper braiding tin-plated (total)
Shielding factor [%] 80
Style variant round
Temperature max. [°C] 80
Temperature min. [°C] -40
UV-resistant Yes
Velocity factor 0,75
Weight per 1 m [g] 78
Width [mm] 8
