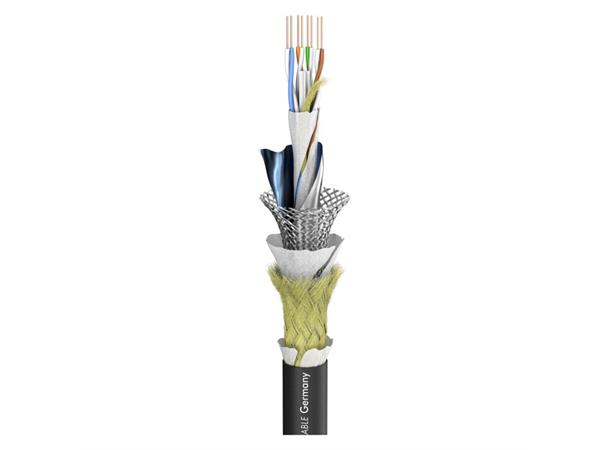

AQUA MARINEX CAT.6 PUR-SR ARAMID Nettverk CAT 6 PUR Ø9.2mm

AQUA MARINEX CAT.6 PUR-SR ARAMID

Nettverk CAT 6 PUR Ø9.2mm

Varenr: 580-0241AQ
234,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

for now your swimming pool will be integrated in your network environment, too! The SC-AQUA MARINEX CAT.6 PUR-SR ARAMID network cable has the mechanical construction of a CAT.6 cable to meet the CAT.5e standard (Class D, 100 MHz at 100 m cable length) both in mobile and underwater use with respect to data. This cable has an extremely versatile field of applications. It may be used for controlling light signals or other visual effects, for realtime data transmission on dive sessions, as a computer link in sediment engineering, as a transmission cable in fish farming or in tunnel construction. It’s the ideal network line for a high-class installation in ship and boat building. Of course, the AQUA MARINEX cable series can also be used in the PA business or in the broadcasting van. The cables are slightly stiffer than standard PVC lines, yet way tougher. The SC-AQUA MARINEX CAT.6 PUR-SR ARAMID network cable remains cold flexible down to –40 °C, which makes it your prime choice for winter events.

Advantages:

  • Sea- and freshwater resistant outer jacket
  • Transversely watertight by water-absorbing, pressure-compensating guard band
  • Halogen-free
  • Cold-flexible and reelable
  • UV- and microbe-resistant

Application:

  • Permanent laying in a max. water depth of 50 m
  • Installation on boats, ships and yachts
  • Demanding outdoor installation (e.g. at longtime events)
  • In- and outdoor installation in leisure parks and water oases
  • Outdoor laying in the snow
  • Reelable, for the broadcasting van technology
Article number:580-0241AQ
Name:SC-AQUA MARINEX CAT.6 PUR-SR ARAMID
EAN:4049371194495
Properties:Analog, Digital 75 O, Halogen-free / LSZH, PUR, Underwater / submerged
Application area:ELA 100 V, Installation, Mobile outdoor / indoor, Stage / live
Application:Cat.6
Colour:black
Construction (network):SF/UTP 4x2x0,51mm
Jacket material:PUR-SR
Jacket Ø [mm]:9,20
Jacket Ø ["]:0.3622
Inner conductor:0
Inner conductor Ø (network) [mm]:0,51
Inner conductor Ø (network) ["]:0.0201
AWG (network):24
Shielding:Copper braiding, tin-plated + AL / PT-foil + special protective banding
Shielding factor [%]:100
Copper strands (network):1
Copper strand Ø (network) [mm]:0,51
Copper strand Ø (network) ["]:0.0201
Conductor insulation material:HDPE
Weight per 1 m [g]:92.34
Weight at 1000 ft. [lbs]:56.5249
UV-resistant:yes
Fire load per m [kWh]:0,57
Style variant:round
Packing:bulk stock
CAT-Type:CAT.6
Temperature min. [°C]:-45
Temperature max. [°C]:90
Width [mm]:9,2
Width ["]:0.3622
Height [mm]:8,3
Height ["]:0.3268
Capacity wire/wire at 1m (network) [pF]:40
Capacity wire/wire at 1 ft. (network) [pF]:12.192
Impedance (network) [O]:100
Insulation resist. per 1 km (network) [GO]:5
Insulation resist. per 1000 feet (network) [GO]:1.524
Max. delay (skew):30ns @100MHz/100m
BPVo-Euroclass:Fca
Teknisk info

Produktinformasjon

Application Cat.6
Application area
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
AWG (network) 23
BPVo-Euroclass Fca
Capacity wire/wire at 1m (network) [pF] 76
CAT-Type CAT.6
Colour black
Colour detailed black
Conductor insulation material Foam / Skin-PE
Construction S/UTP 4x2x0.57 mm
Construction (network) S/UTP 4x2x0.57 mm
Copper strand Ø (network) [mm] 0,57
Copper strands (network) 1
Farge Sort
Fire load per m [kWh] 0,24
Height [mm] 8
Impedance 100 Ohm
Inner conductor (network) 8
Inner conductor (network) [mm²] 0,26
Insulation resist. per 1 km 2 G Ohm
Jacket material PUR
Jacket material (network) PVC
Jacket Ø (network) [mm] 6,2
Jacket Ø [mm] 8
Materiale PUR
Number of Channels (network) 1
Packing
  • 100 m spool
  • 500 m spool
Properties
  • FRNC flame retardant
  • Halogen-free / LSZH
  • OFC oxygen free copper
  • PUR
Shielding Copper braiding tin-plated (total)
Shielding factor [%] 80
Style variant round
Temperature max. [°C] 80
Temperature min. [°C] -40
UV-resistant Yes
Velocity factor 0,75
Weight per 1 m [g] 78
Width [mm] 8
