Application
|
Cat.6
|
|
Application area
|
- Installation
- Mobile outdoor / indoor
- Studio / Broadcast
|
|
AWG (network)
|
23
|
|
BPVo-Euroclass
|
Fca
|
|
Capacity wire/wire at 1m (network) [pF]
|
76
|
|
CAT-Type
|
CAT.6
|
|
Colour
|
black
|
|
Colour detailed
|
black
|
|
Conductor insulation material
|
Foam / Skin-PE
|
|

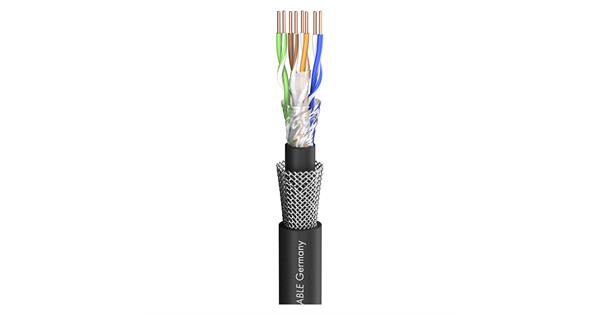

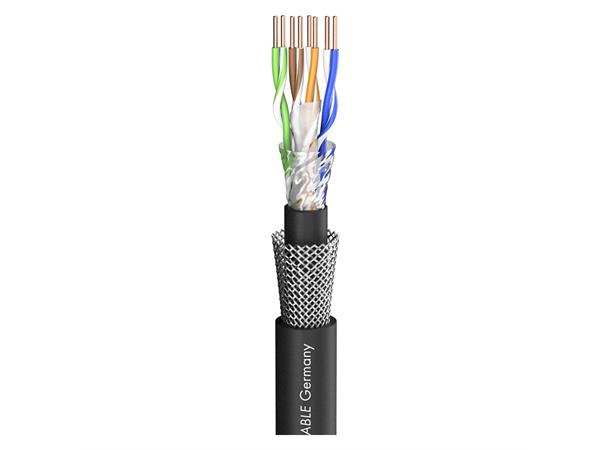

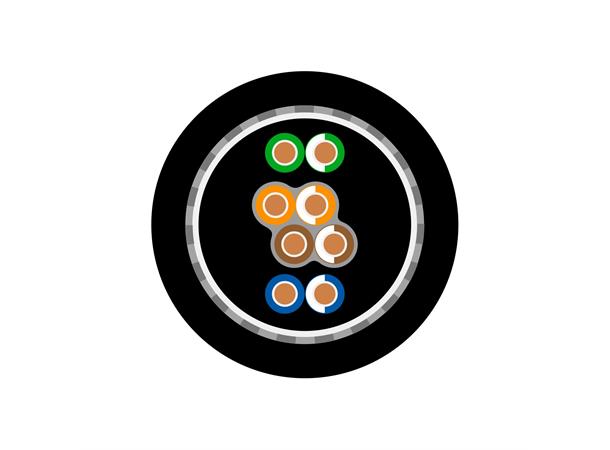

Construction
|
S/UTP 4x2x0.57 mm
|
|
Construction (network)
|
S/UTP 4x2x0.57 mm
|
|
Copper strand Ø (network) [mm]
|
0,57
|
|
Copper strands (network)
|
1
|
|
Farge
|
Sort
|
|
Fire load per m [kWh]
|
0,24
|
|
Height [mm]
|
8
|
|
Impedance
|
100 Ohm
|
|
Inner conductor (network)
|
8
|
|
Inner conductor (network) [mm²]
|
0,26
|
|
Insulation resist. per 1 km
|
2 G Ohm
|
|
Jacket material
|
PUR
|
|
Jacket material (network)
|
PVC
|
|
Jacket Ø (network) [mm]
|
6,2
|
|
Jacket Ø [mm]
|
8
|
|
Materiale
|
PUR
|
|
Number of Channels (network)
|
1
|
|
Packing
|
|
|
Properties
|
- FRNC flame retardant
- Halogen-free / LSZH
- OFC oxygen free copper
- PUR
|
|
Shielding
|
Copper braiding tin-plated (total)
|
|
Shielding factor [%]
|
80
|
|
Style variant
|
round
|
|
Temperature max. [°C]
|
80
|
|
Temperature min. [°C]
|
-40
|
|
UV-resistant
|
Yes
|
|
Velocity factor
|
0,75
|
|
Weight per 1 m [g]
|
78
|
|
Width [mm]
|
8
|
