Application area
|
- Installation
- Mobile outdoor / indoor
- Studio / Broadcast
|
|
AWG (network)
|
26
|
|
BPVo-Euroclass
|
Fca
|
|
Capacity wire/wire at 1m (network)
|
45 pF
|
|
Colour
|
black
|
|
Colour detailed
|
black
|
|
Conductor insulation material
|
Foam/Skin-PE
|
|

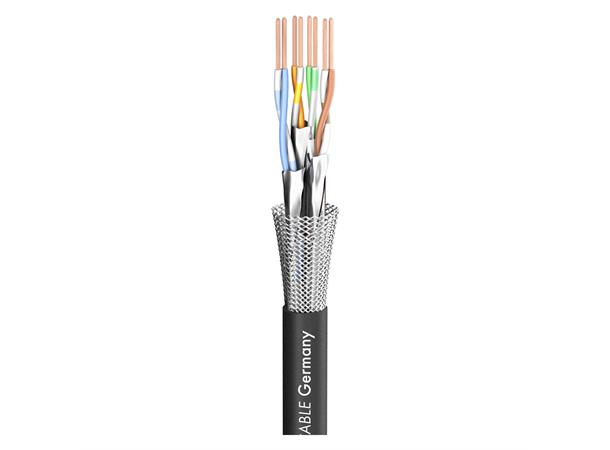

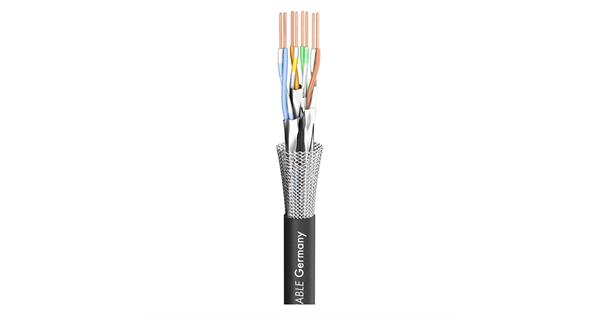

Construction (network)
|
SFTP 4x2x0,14mm² / 600 MHz
|
|
Copper strand Ø (network)
|
0,16 mm
|
|
Copper strands (network)
|
7
|
|
Farge
|
Sort
|
|
Fire load per m
|
0,19 kWh
|
|
Height
|
6,5 mm
|
|
Impedance
|
100 Ohm
|
|
Insulation resist. per 1 km
|
2 G Ohm
|
|
Insulation resist. per 1 km (network)
|
2 G Ohm
|
|
Jacket material
|
PUR
|
|
Jacket Ø
|
6,5 mm
|
|
Loop resistance per km
|
290 Ohm
|
|
Materiale
|
PUR
|
|
Number of Channels (network)
|
1
|
|
Packing
|
|
|
Properties
|
- Digital 110 Ohm AES / EBU
- FRNC flame retardant
- Halogen-free / LSZH
- OFC oxygen free copper
- PUR
|
|
Shielding
|
PimF, Copper braiding tin-plated
|
|
Shielding factor
|
1
|
|
Style variant
|
round
|
|
Temperature max.
|
60 °C
|
|
Temperature min.
|
-20 °C
|
|
UV-resistant
|
Yes
|
|
Velocity factor
|
0,75
|
|
Weight per 1 m
|
40 g
|
|
Width
|
6,5 mm
|
