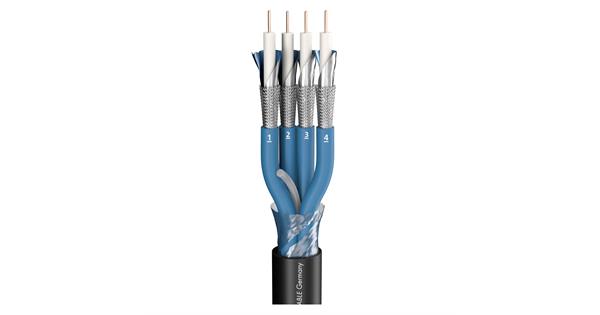

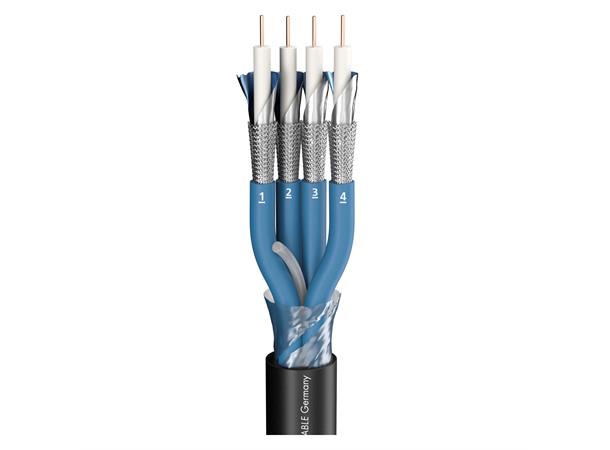

SC-VECTOR (RCB) 4 x 0,80, PVC Ø17mm, sor Digital HD 1.5 Gb/s rate

SC-VECTOR (RCB) 4 x 0,80, PVC Ø17mm, sor

Digital HD 1.5 Gb/s rate

Varenr: 600-0161-04
138,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

As swift as an arrow...

is the data transmission of the SC-Vector (RCB) with its 1.5 Gb/s rate which also guarantees a low return loss. Of course, the SC-Vector (RCB) can also serve as a high-quality G-SDI-video line for studio or OB van applications. With its dual shielding and outstanding damping values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 video cable it allows up to 30 % longer transmission distances.
The SC-Vector (RCB) is used in OB vans, digital TV, at sporting events, live shows or other large events.

Advantages:

  • Low damping values for long distances
  • Robust and durable outer sleeve

Application:

  • Digital SDI/HD-SDI long distance transmission
  • Video transmission for OB van technology
Teknisk info

Produktinformasjon

Application video cable
Application area
  • ELA 100 V
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
AWG (video) 20
BPVo-Euroclass Fca
Capacity wire/electic screen at 1m (video) 52,9 pF
Colour blue
Colour detailed blue
Conductor insulation material Gas Injected-PE
Conductor insulation Ø 3,7 mm
Conductor resistance per 1 km 37 Ohm
Copper strand Ø (video) 0,8 mm
Copper strands (video) 1
Farge Sort
Impedance 75 Ohm
Inner conductor (video)
  • 0,5 mm²
  • 1
Inner conductor Ø (video) 0,8 mm
Jacket material PVC
Jacket Ø 15 mm
Materiale PVC
Max. transmission distance (SDI) 220 m
Number of Channels (video) 2
Packing bulk stock
Properties
  • 6G-SDI
  • Analog
  • Digital 75 Ohm
  • OFC oxygen free copper
  • SDI
Shield. resistance per 1 km 20 Ohm
Style variant round
Temperature max. 80 °C
Temperature min. -10 °C
Velocity factor 0,82
