SC-VECTOR PLUS 1.2L/4.8DZ 75 Ohm PUR Solid jakke.


Solid jakke.

Varenr: 600-0211
65,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
SC-VECTOR PLUS 1.2L/4.8DZ 75 Ohm PUR Solid jakke.
SC-VECTOR PLUS 1.2L/4.8DZ 75 Ohm PUR Solid jakke.GREEN
Vis varianter som liste
100+ på lager
BeskrivelseTeknisk infoSupport

Very common throughout the Wild West…

is this robust and dependable video and SAT cable that was originally designed in the United States. However, with its solid PE insulation its specifications were not

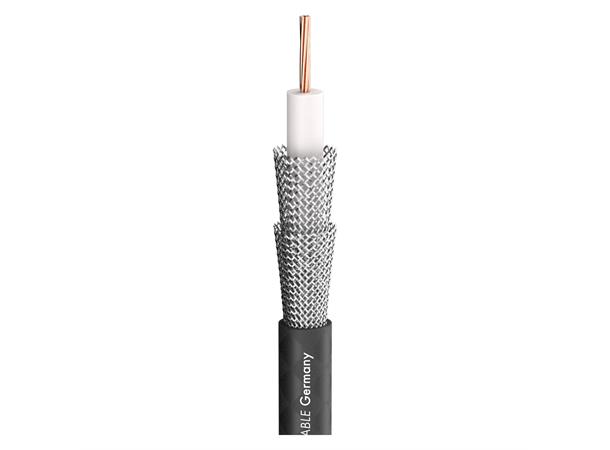

satisfactory and the cable was not robust enough. Contrary to the original version we have significantly improved the new SC-Vector Plus DZ. Now it is SDI/HD-SDI capable and reelable and thus may be used as a flexible video line! It has a foamed insulation with a protective lacquer, a 7 x 0,40 mm litz construction, two overlaying cross meshes each with 100 % coverage and a weather-proof and notch-resistant PMB jacket. The copper meshes also make the cable extremely treadresistant and offer protection against rodents.


  • Excellent transmission quality due to foam insulation
  • Steadily consistent values
  • UV- and notch-resistant PUR jacket, rodent protection


  • Dual shielded cable for digital SAT systems and professional video technology
  • Professional HD-SDI applications
  • Highly flexible and easy to reel


UHDTV1+2 (12 Gb/s) SMPTE 2082 40dB@6000MHz 2160p60: 62 m (203 ft.)
UHDTV1+2 (6 Gb/s) SMPTE 2081 40dB@3000MHz 1080p120, 2160p30: 96 m (315 ft.)
UHDTV (3 Gb/s) SMPTE 425M 40dB@1500MHz 1080p60: 145 m (476 ft)
HD-3G-SDI (3 Gb/s) SMPTE 424M 20dB@1500MHz 1080p60: 73 m (239 ft.)
HD-SDI (1,5 Gb/s) SMPTE 292M 20dB@750MHz 720p, 1080i: 106 m (347 ft.)
SD-SDI (270 Mb/s) SMPTE 259M 30dB@135MHz 480i, 576i: 395 m (1296 ft.)

Teknisk info


Application video cable
Application area
  • ELA 100 V
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
AWG (video) 18
BPVo-Euroclass Fca
Capacity wire/electic screen at 1m (video) 53 pF
Colour detailed black
Conductor insulation material Foam/Skin-PE
Conductor insulation Ø 4,8 mm
Conductor resistance per 1 km 20 Ohm
Copper strand Ø (video) 0,4 mm
Copper strands (video) 7
Farge Sort
Height 7,1 mm
Impedance 75 Ohm
Inner conductor (video)
  • 0,88 mm²
  • 1
Inner conductor Ø (video) 1,2 mm
Jacket material PUR
Jacket Ø 7,1 mm
Materiale PUR
Name SC-Vector Plus DZ
Number of Channels (video) 1
Packing 100 m, bulk stock
  • Analog
  • Digital 75 Ohm
  • FRNC flame retardant
  • Halogen-free / LSZH
  • HDTV
  • OFC oxygen free copper
  • PUR
  • SDI
Shield. resistance per 1 km 5,6 Ohm
Shielding 2 x Copper braiding tin-plated
Shielding factor 0,98
Style variant round
Temperature max. 80 °C
Temperature min. -30 °C
UV-resistant Yes
Velocity factor 0,86
Weight per 1 m 68 g
Width 7,1 mm
