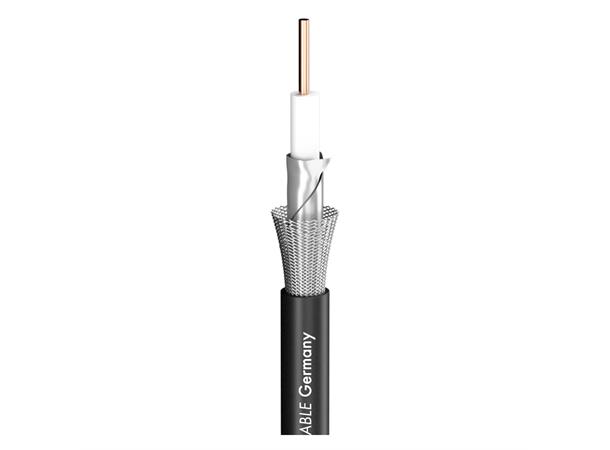

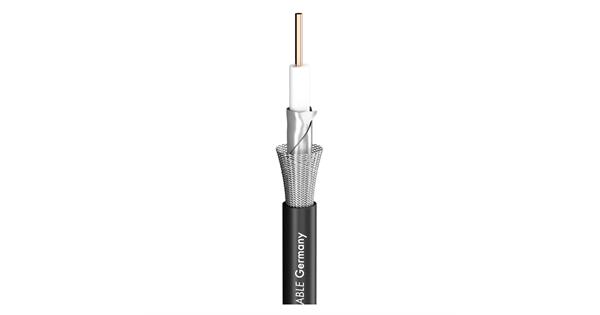

RG58 Low Loss Koaxialkabel 50 Ohm 100%

Anvendelig kabel.

Varenr: 600-0401LL

27,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.

ikke på lager (14 dager)

Beskrivelse

RG/U Coax SC-Classic Series MKII; 1 x 1,02; PVC Ø 5,00 mm; black

Teknisk info

Application	RG/U Coax
Application area	ELA 100 V Installation Studio / Broadcast
BPVo-Euroclass	Fca
Capacity wire/electic screen at 1m (video)	82 pF
Colour	black
Colour detailed	black
Conductor insulation material	Foam/Skin-PE
Conductor insulation Ø	2,95 mm
Copper strand Ø (video)	1,02 mm
Copper strands (video)	1
Farge	Sort
Fire load per m	0,15 kWh
Height	5 mm
Impedance	50 Ohm
Inner conductor (video)	0,82 mm² 1
Inner conductor Ø (video)	1,02 mm
Jacket material	PVC
Jacket Ø	5 mm
Materiale	PVC
Number of Channels (video)	1
Packing	100 m ring 500 m spool
Properties	Analog OFC oxygen free copper
RG-Type	RG58 C/U LL
Shielding	Copper braiding tin-plated + AL-foil
Shielding factor	0,92
Style variant	round
Temperature max.	-25 °C
Temperature min.	70 °C
UV-resistant	Yes
Velocity factor	0,66
Weight per 1 m	38 g
Width	5 mm
