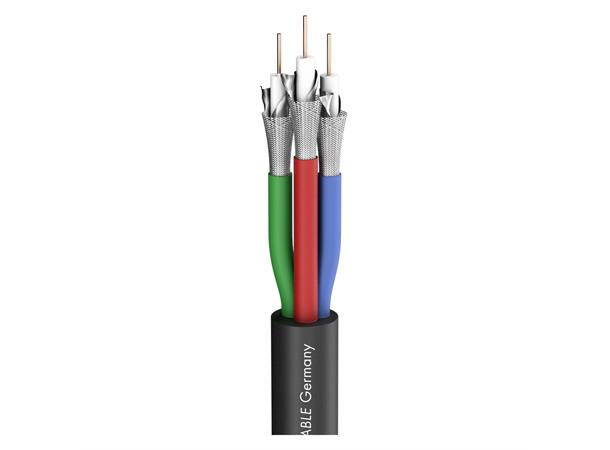

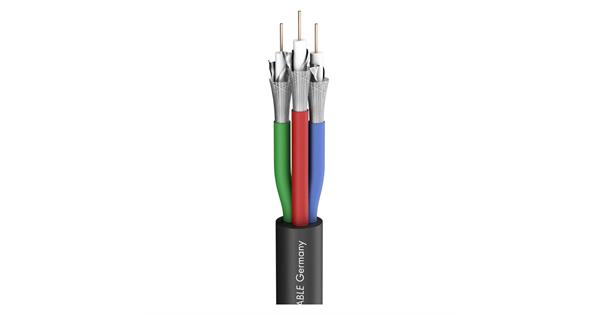

TRANSIT 3, 75 Ohm Long distance RGB HD kabel for lange strekk.

TRANSIT 3, 75 Ohm Long distance RGB

HD kabel for lange strekk.

Varenr: 600-0851-03
67,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
MaterialePVC
TRANSIT 3, 75 Ohm Long distance RGB HD kabel for lange strekk.
TRANSIT 2, 75 Ohm Long distance FRNC HD kabel for lange strekk.
Ledere
2
3
5
7
Vis varianter som liste
-+
20+ på lager
BeskrivelseTeknisk infoSupport
Beskrivelse

Looking for the superstar...

among the video and sat cables? The SC-Slimline RCB meets all requirements put on high-quality HD-SDI/HDTV cables these days and, owing to the use of high-grade materials, promises a long service life. To achieve super low damping values, we have fitted the cable with a massive OFC (oxygen-free copper) wire, a gas-injected insulation and a dual screen (Cu mesh screen + AL/PT foil).

Advantages:

  • Long life due to non-aging jacket
  • Consistent, optimised electrical values due to the use of a massive
    OFC wire
  • Gas-injected insulation for best damping values

Application:

  • HD-SDI-video transmission in the professional broadcasting/studio sector
  • OB van technology
  • Permanent installation, HF technology and antenna construction
Teknisk info

Produktinformasjon

Application video cable
Application area
  • ELA 100 V
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
AWG (video) 23
BPVo-Euroclass Fca
Capacity wire/electic screen at 1m (video) 55 pF
Colour black
Colour detailed black
Conductor insulation material Gas-injected Foam/Skin-PE
Conductor insulation Ø (video) 2,8 mm
Copper strand Ø (video) 0,6 mm
Copper strands (video) 1
Fire load per m 0,84 kWh
Height 11,2 mm
Impedance 75 Ohm
Inner conductor (video)
  • 0,28 mm²
  • 3
Inner conductor Ø (video) 0,6 mm
Jacket material PVC
Jacket Ø 11,2 mm
Ledere 3
Materiale PVC
Max. transmission distance (3G) 60 m
Max. transmission distance (HD-SDI) 120 m
Max. transmission distance (SDI) 180 m
Packing bulk stock
Properties
  • Analog
  • Digital 75 Ohm
  • HDTV
  • OFC oxygen free copper
  • SDI
Shielding Copper braiding tin-plated 90 % + AL / PT-foil
Style variant round
UV-resistant Yes
Weight per 1 m 150 g
Width 11,2 mm
