The ADJ 12PX Hex Pearl is a versatile LED Par fixture with 12 x 12-Watt , 6-IN-1 HEX LEDs in a white metal housing. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, Locking Power and 3 & 5pin DMX connectors, it’s great for uplighting a venue.
12PX HEX Pearl professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 11 units together via the fixtures built-in Locking Power In/Out power connectors.
The 12PX HEX Pearl is compatible with the optional Dotz Par RF, easy-to-use, wireless RF remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs. Specifications:
Source
• Light Source: 12 RGBWA+UV LEDs (Red, Green, Blue, White, Amber & UV LED)
• Individual LED wattage : 12W
• Average LED lifetime :approximately 50,000 hrs.
Optics
• Beam Angle: 30 degrees
• Gel frame for diffusion filters included (optional diffusion filters)
Control
• 5 Operational modes: Static Color Mode, RGBWA+UV Dimmer Mode, Program Mode, Sound Active Mode and
DMX Control
• 4 DMX Modes: 6, 7, 8 & 12-channel
• Electronic Dimming: 0 - 100%
• 63 built-in Color Macros
• 7 built-in Programs, Sound Active Mode
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
• Optional Dotz PAR RF Remote available (order code 1223200035)
• LED pulse and strobe effect

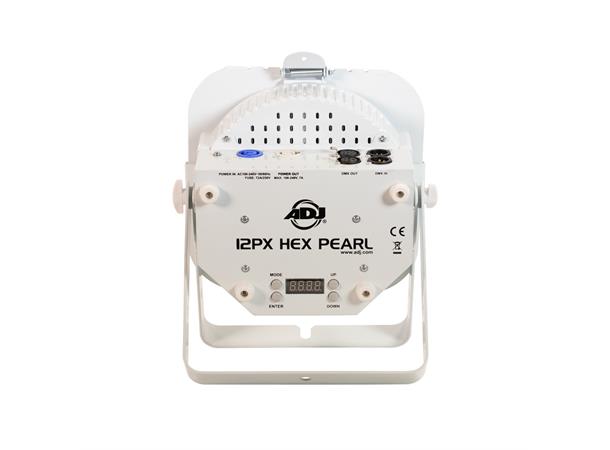

• 4-button, DMX digital display on rear panel
Colors
• RGBWA+UV Color Mixing
Construction
• White Metal Housing

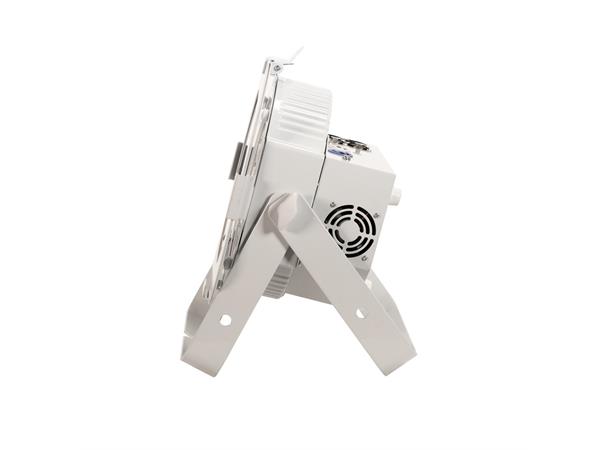

• Fan cooling
• Scissor yoke
Electrical
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 133W
Connections
• Sideways 3- & 5-pin Locking DMX connectors
• Sideways Locking Power In/Out connections
Dimensions & Weight
• Dimensions (LxWxH): 135.8 x 249 x 297.4mm
• Weight: 4 kg.
