The ADJ Element ST HEX is the of the latest addition to ADJ’s Element series of battery powered wireless LED up-lighters. Building on the success of ADJ’s popular Element Hex, the new model features an extremely compact design as well as a full-color touch screen display for extremely easy setup and DMX addressing. Utilizing the power of 4 x 6-Watt RGBAW+UV LEDs to generate a powerful wash of color with a 20-degree beam angle, the fixture features a built-in rechargeable battery that offers up to 8 hours of continuous operation as well as ADJ’s WiFly EXR wireless DMX connectivity. Cleverly designed with a built-in variable-angle kick-stand and convenient carry handle, the unit is ideal for production companies, décor specialists and mobile entertainers.

Product Description

Optical:

• 4 x 6-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)

• Life expectancy: rated at 50,000 hrs.

• LUX: >412@3M(9.8 ft.)

• Beam angle: 20-degree

Connection:

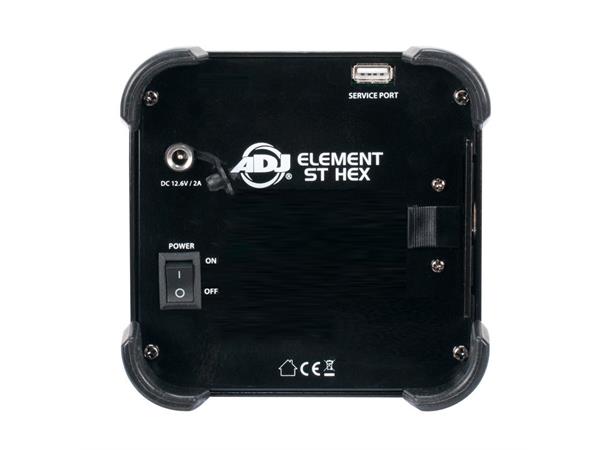

• 12.6VDC Power Input

• With Wired Digital Communication Network

Control:

• Control protocol: WiFLY EXR wireless DMX

• 5 DMX Channel modes: 6, 7, 8, 11 & 12

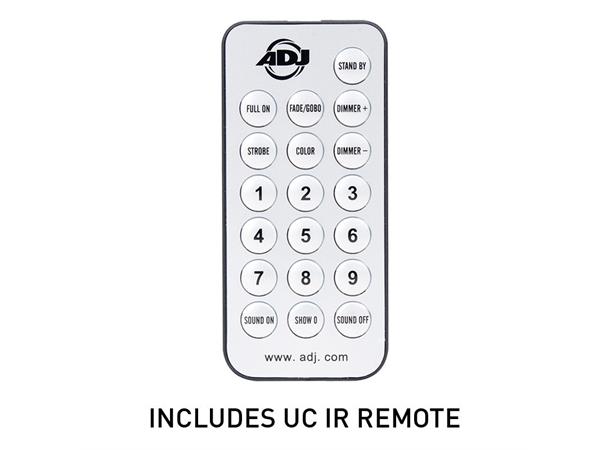

• Remote control: WiFLY EXR DMX and UC-IR

• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

• Selectable, English or Spanish User Menu

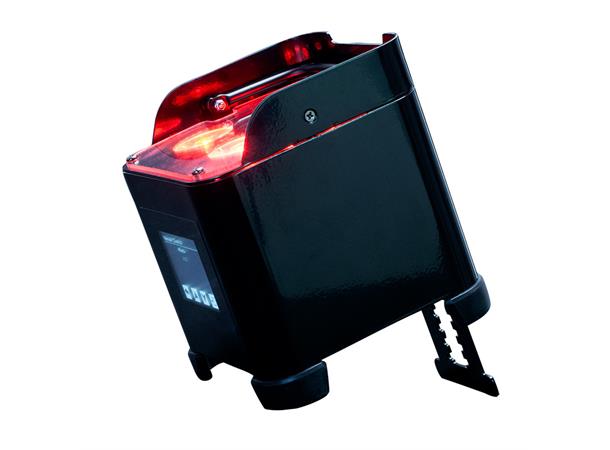

• Built-in kickstand to angle figure while it’s on the floor

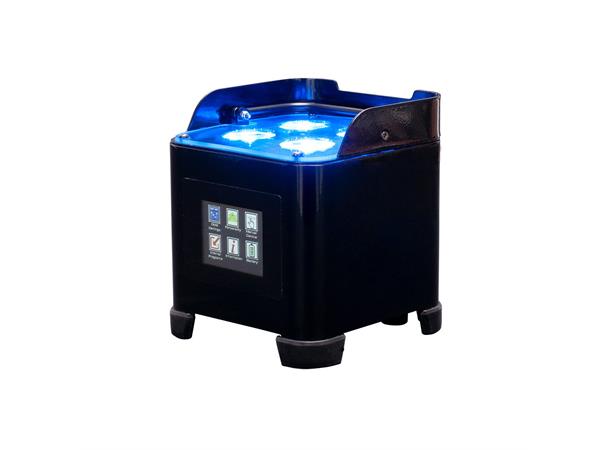

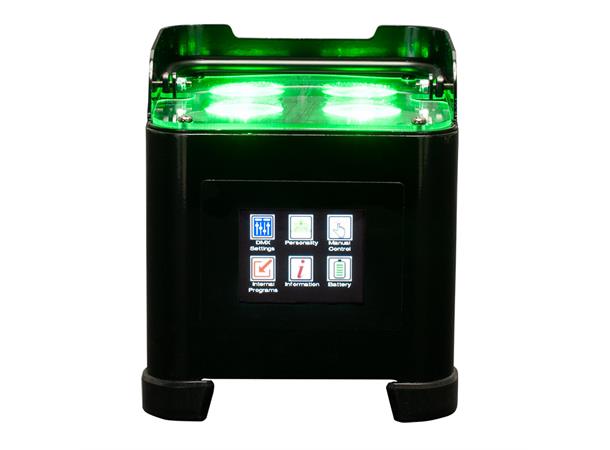

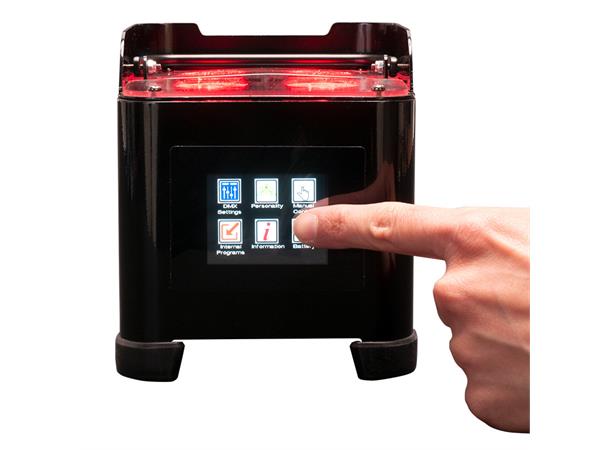

• DMX menu touch screen display on rear panel

• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver

• 63 built-in Color Macros

• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!

• LED pulse and strobe effect (0.1Hz-11Hz)

• Flicker Free Operation

• Electronic Dimming: 0 - 100% with 5 dimming curves

• Run all night – No duty cycle

• Energy Save Mode to preserve battery life

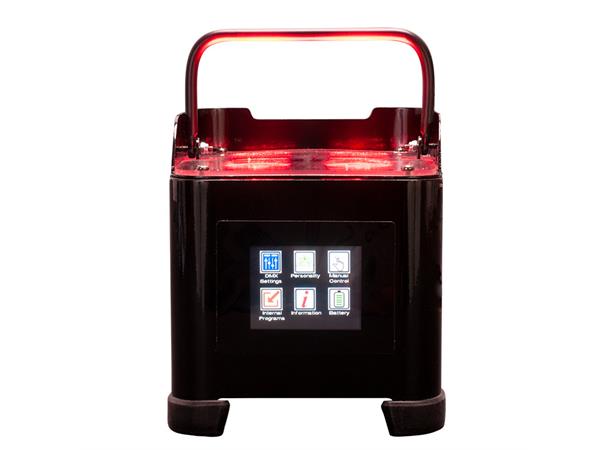

• Carry handle and snoot to hide handle and LED lenses

Electrical:

• Power Draw Total (All LED’s @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,

• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5” x 4.93” x 5.6” / 127 x 125 x 143mm

• Weight: 3.5 lbs. / 1.6kg.

Battery:

• Battery Type: Fixed Lithium Battery

• Battery Energy: 73.26WH (Watt Hours)

• Battery Weight: 0.42 kg.

• Battery Voltage: 11.1V

• Battery Capacity: 6.6AH

• Total Lithium Ion Cells: 9 pieces

• Battery Wrap Material: PVC sleeving + highland barley paper

• Battery Charge Time: 5 Hours (With POWER switch On)

• Battery Life: 4 Hours Full On, 6 and 8 Hour

• Energy Save operation modes (Full Charge)

Certifications:

• IP20 Indoor rated
