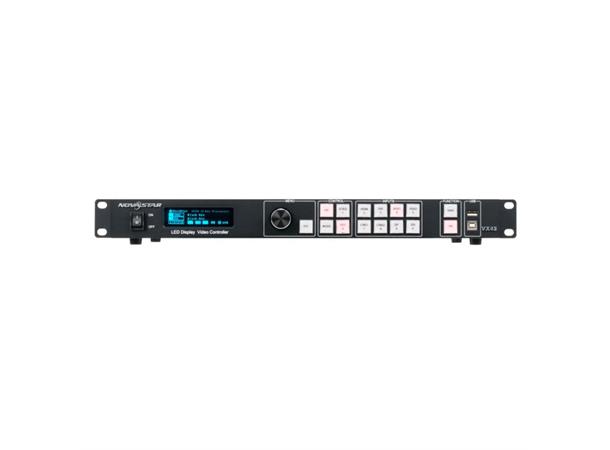

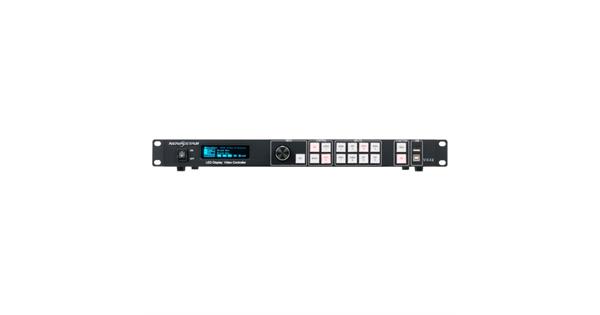

The new NOVASTAR VX4S™ is a professional and user friendly LED display controller and a powerful front end Scaler that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.6 million pixels of LED control, and supports Nova’s new generation point-by-point correction technology.

 NOVASTAR VX4S™ is compatible with all ADJ LED Video Series: VS2/VS3/VS5, AV2/AV3/AV4IP and AV6X

Specifications:

Control

• Built-In Scaler

• Touch-Track : Onboard configuration and Test of video walls

• Detailed control of Video Walls via LCTMars PC-Software

• Seamless High-Speed Switch and Fade-In/Out effect

• PIP-functionality with adjustable size and position

• Multiple VX4S can be cascaded via USB

Resolution

• Max resolution capacity : 2.3 million pixels

• 1920x1200@60Hz

• 3840x600@60Hz

• 10bit/8bit HD Video Source

• Supports HDCP, 1080i/P, 480i, 576i, 720P, PAL/NTSC

Construction

• Aluminium Metal Housing

• Rack Mountable

Electrical

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Power Draw: 25W

• Operating Temperature: -20°C - +60°C

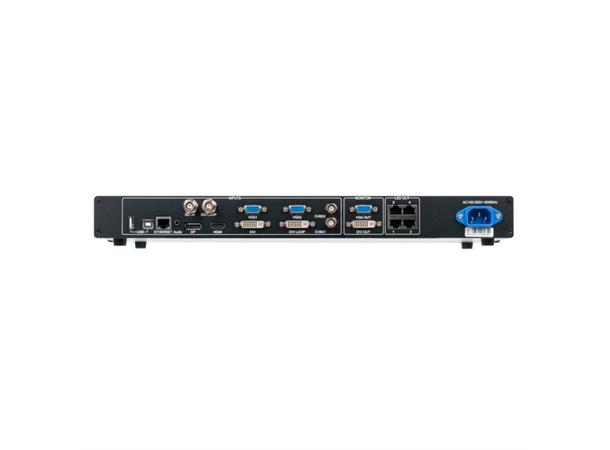

Connections

• Inputs

  2x CVBS

  2x VGA

  1x DVI

  1x HDMI

  1x DP

  1x SDI

  1x 3.5mm MiniJack Audio In

  1x RJ45 Network LAN Connector for IP-based Control

  1x Locking IEC Power connector

• Outputs

  4x RJ45 4Gigabit Ethernet Screen outputs

  1x DVI Loop

  1x DVI Monitor Out

  1x VGA Monitor Out

  1x SDI Loop

• USB

  2x USB Type A port to connect USB Stick or cascade OUT

  2x USB Type B control interface for connection with PC or Cascade IN

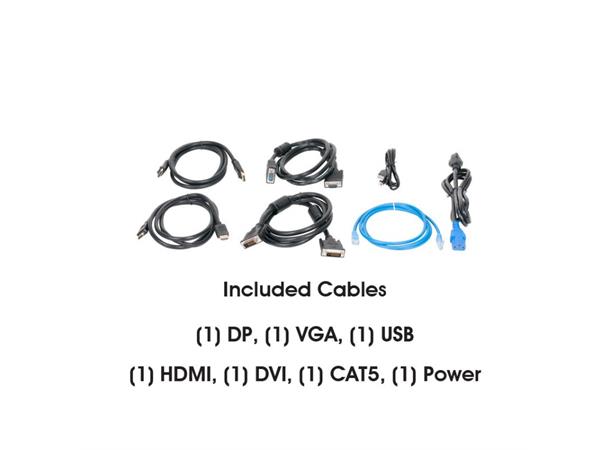

• DP, VGA, USB, HDMI, DVI, CAT5 & Power cable included

Dimensions & Weight

• Dimensions (LxWxH): 482.6 x 251.5 x 45mm

• Weight: 2,55kg.
