TVL F1WW

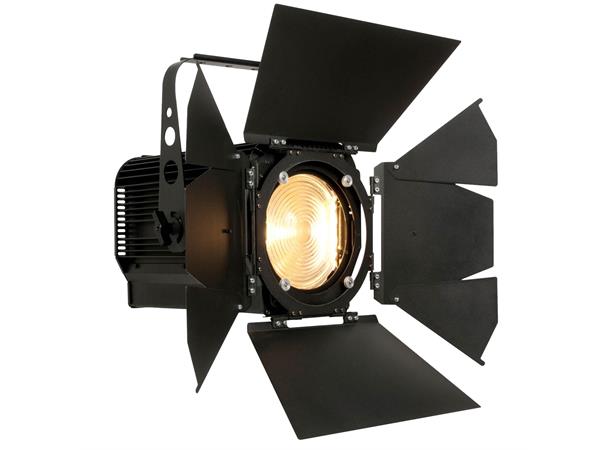

 These new TVL F1WW™ features a 100W Warm White 3,200K LED engine, motorized 12°-40° zoom, no noise thermo-optical cooling, DMX-controlled dimmer and zoom, including barndoors and gel frame holder, flicker free operation for TV and Film, no fans for silent operation, locking 5pin DMX in/out and locking power in connections, integrated yoke / handle, 141W max power consumption and a multi-voltage universal auto switching power supply (100-240V).



FEATURES

Very Efficient LED Fresnel 12° - 40° Motorized Zoom (5) Variable Dimming Curve Modes No Noise Thermo-Optical Cooling Technology Manual and DMX Controlled Color Temp and Dimming Flicker Free Operation for TV and Film Including Rotating Barndoor and Gel Frame Holder RDM - Remote Device Management

SOURCE

(1) 100W Cool or Warm White LED Engine 50,000 Hour Average LED Life

PHOTOMETRIC DATA

High CRI = 95 / 24.3 Lm/W 3,200K 2,192 Max LUX @ 5M (12° 3,200K)

EFFECTS

Zoom: 12° - 40° Dimming: 0% - 100% (5) Variable Dimming Curve Modes

CONTROL / CONNECTIONS

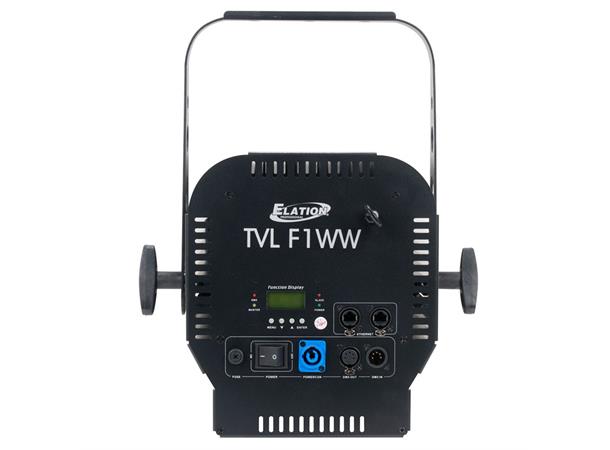

(2) DMX Channels  (4) Button Control LED Menu Display Panel Locking 5pin DMX In/Out Locking power connector In

SIZE / WEIGHT

Length: 20.4” (519 mm) Width: 16” (407 mm) Vertical Height: 17.4” (442 mm) Weight: 35 lbs. (15.8 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz 141W Max Power Consumption 14°F to 113°F (-10°C to 45°C)
