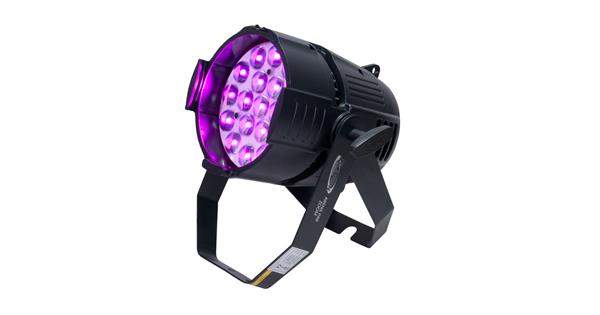

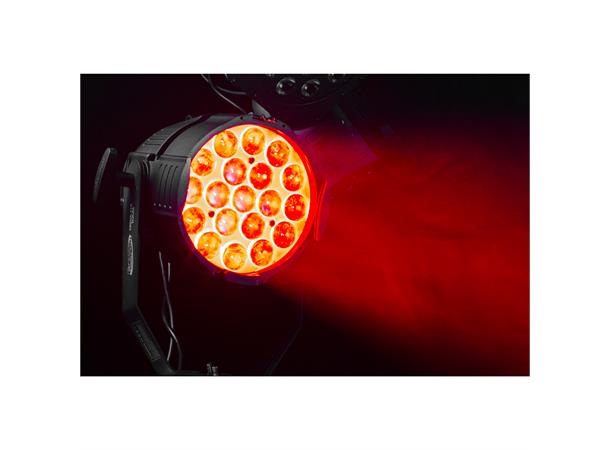

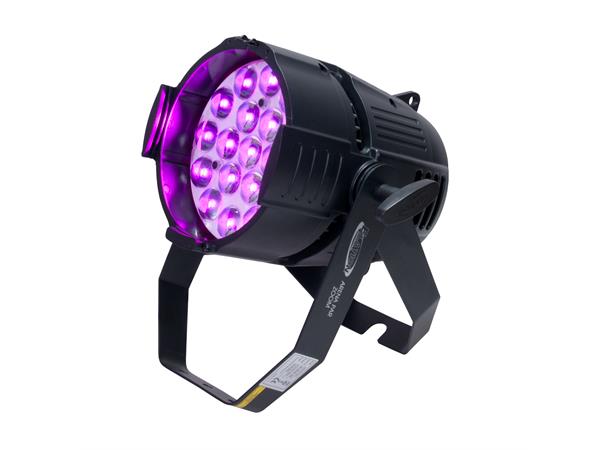

The Arena Par Zoom™ features (19) 10W QUAD Color LEDs from Osram™, 10° to 60° motorized zoom, strobe effects, variable color temperature (3,200K – 7,200K), variable dimming curves, DMX, Locking 3/5pin XLR Connector In/Out and Locking Power Connector In/Out, flicker free operation for TV and Film, LCD menu display with 4 button control panel, integrated dual yoke/floor stand and a multi-voltage universal auto switching power supply (100-240V).
"
FEATURES
Versatile LED Zoom Par Luminaire
Motorized 10° - 60° Zoom
Full RGBW Color Mixing
Variable Dimming Curves
Flicker Free Operation for TV and Film
SOURCE
(19) 10W Osram™ QUAD Color (RGBW) LEDs
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
12,600 LUX 1,171 FC @ 9.8’ (3m) (Min. Zoom)
900 LUX 84 FC @ 9.8’ (3m) (Max. Zoom)
EFFECTS
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves
COLOR
Full RGBW Color Mixing
Variable Color Temperatures (3,200K - 7,200K)

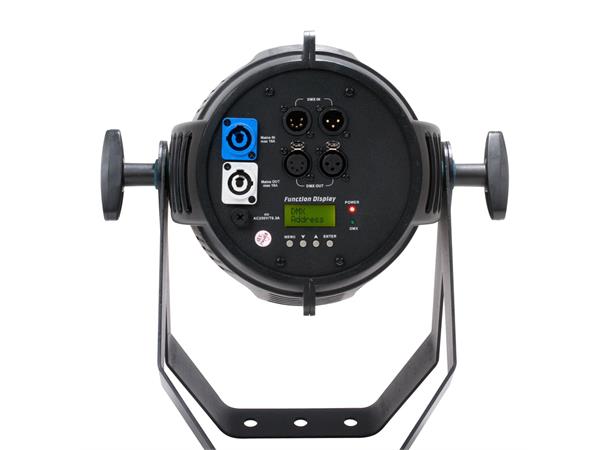

CONTROL / CONNECTIONS
(7) DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16)
4 Button Control Panel
LCD Menu Display
Locking 3/5pin XLR Connector In/Out
Locking Power Connector In/Out
SIZE / WEIGHT
Length: 12.8” (324mm)
Width: 10.9” (276mm)
Vertical Height: 14.5” (368mm)
Weight: 15.9 lbs. (7.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
220W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1236100160 Barndoor for Arena Par Zoom
1322000058 A-Loader HH
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
"
