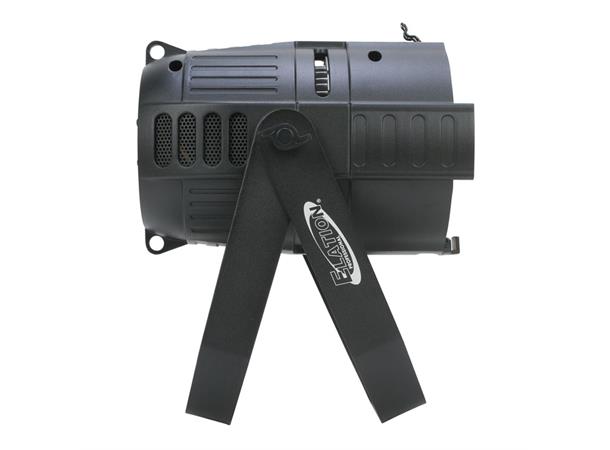

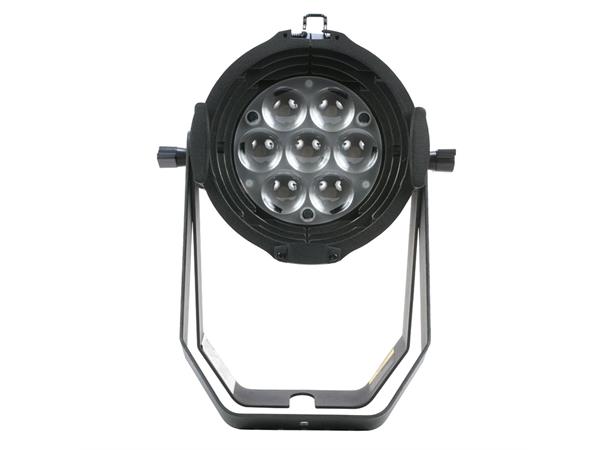

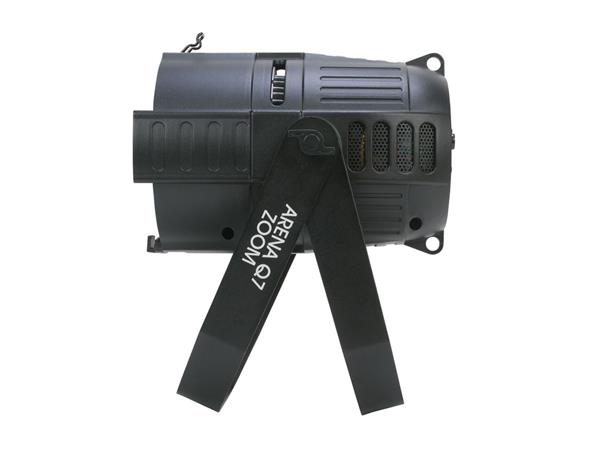

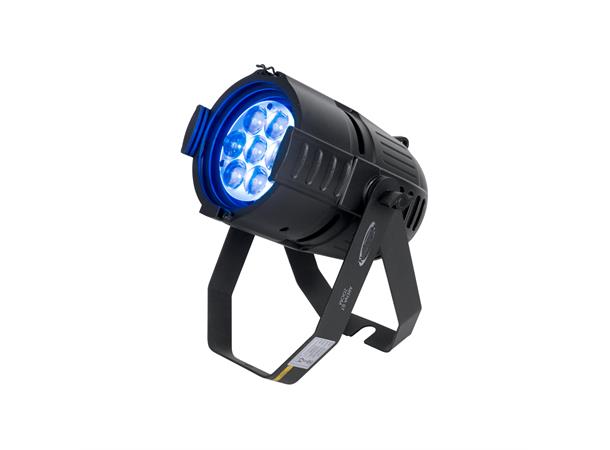

The Arena Q7 Zoom™ feature (7) 10W QUAD Color LEDs from Osram™, 10° to 60° motorized zoom, strobe effects, variable color temperature (3,200K – 7,200K), variable dimming curves, locking 5pin DMX in/out and locking power in/out connections, flicker free operation for TV and Film, LCD menu display with 4 button control panel, integrated dual yoke/floor stand and a multi-voltage universal auto switching power supply (100-240V).



TECHNICAL DATA

FEATURES

Versatile LED Zoom Par Luminaire Motorized 10° - 60° Zoom Full RGBW Color Mixing  Variable Dimming Curves Flicker Free Operation for TV and Film

SOURCE

7 x 10W Osram™ QUAD Color (RGBW) LEDs 50,000 Hour Average LED Life*

PHOTOMETRIC DATA

47,500 LUX 706 FC @ 3.3’ (1m) (10° Beam Full On) 3680 LUX 342 FC @ 3.3’ (1m) (60° Beam Full On)

EFFECTS

64 Colour Macros Strobe & Variable Strobe Macros Electronic Dimming & Variable Dimming Curves

COLOR

RGBW

CONTROL / CONNECTIONS

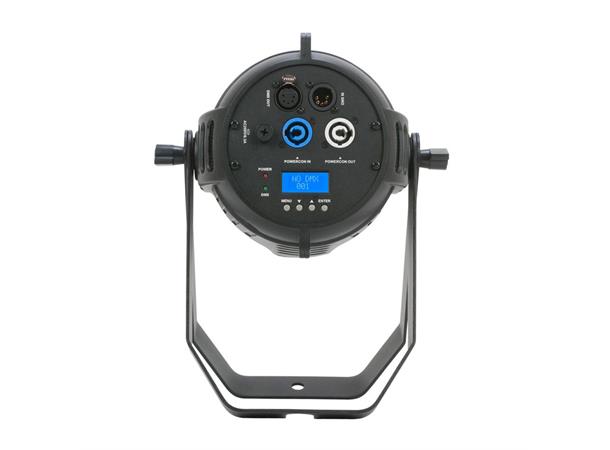

7 DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16) 4 Button Control Panel LCD Menu Display 5pin DMX In/Out  Power cable In/Out
Power Link Up To (15) Units at 120V, (28) Units at 230V
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 15.3” (388mm) Width: 7.5” (190mm) Vertical Height: 7.1” (180mm) Weight: 13.2 lbs. (6 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz 95W Max Power Consumption
Max Ambient Temperature 104°F (40°C)

OPTIONAL ACCESSORIES

1236100156 Barndoor for Arena Q7 Zoom 1322000058 A-Loader HH
