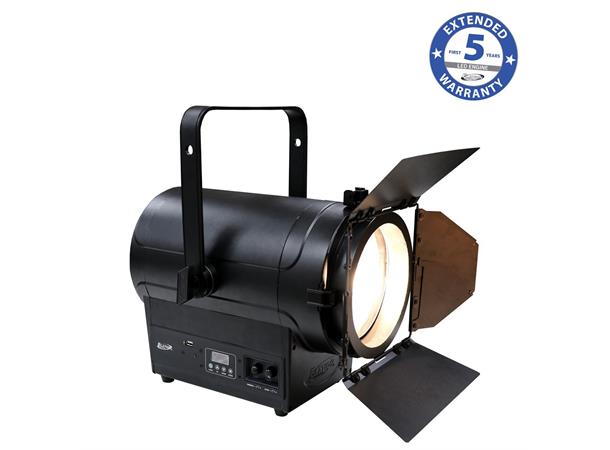

The KL Fresnel Series is a line of warm-white or cold-white Fresnel lights with all the benefits of LED. Available in 50W, 150W and 350W models, the WW models provide all the warmth of tungsten halogen, a 3,000K fixed color temperature and high color rendering capacity to ideally mimic the warm glow output of traditional tungsten halogen lights while surpassing them in output and efficiency.
The CW models are a line of cold-white LED Fresnel lights with 5,600K Cool White LED engine. All KL Fresnel models house a manual zoom (motorized zoom in KL Fresnel 8 / KL Fresnel 8 CW) and include barn doors and a filter frame.
"
FEATURES
3,000K Warm White LED Fresnel Luminaire
350W Single Source LED
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
11° - 57° Motorized Zoom
Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
350W Warm White LED Engine
14,000 Total Output Lumens, 3,000K, 96CRI
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
19,410 LUX 1,803 FC @ 9.8’ (3m) (Min. Zoom)
1,853 LUX 172 FC @ 9.8’ (3m) (Max. Zoom)
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
3,000K Warm White LED
CONTROL / CONNECTIONS
5 DMX Channels Modes (2 / 3 / 3 / 6 / 7)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Dimming Control
4 Button and 2 Dial Control Panel
Manual and DMX Controlled Dimming
180° Reversible LCD Menu Display
USB Firmware Service Port
Locking 3/5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 12.9” (328mm)
Vertical Height: 18.0” (456mm)
Weight: 28.0 lbs. (12.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
430W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Rotating Barn Doors
Gel Frame Holder
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1322000060 C-Loader II
SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
"
