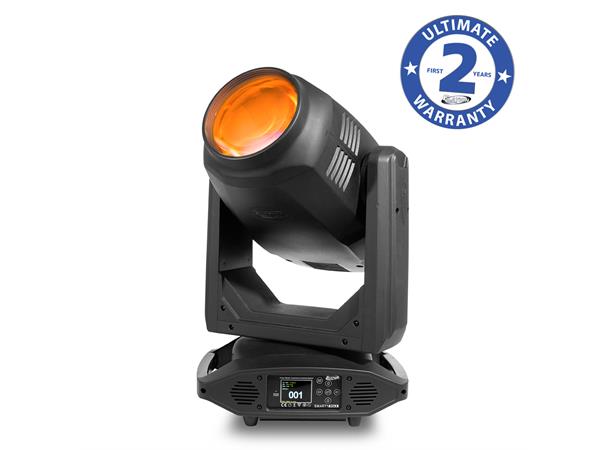

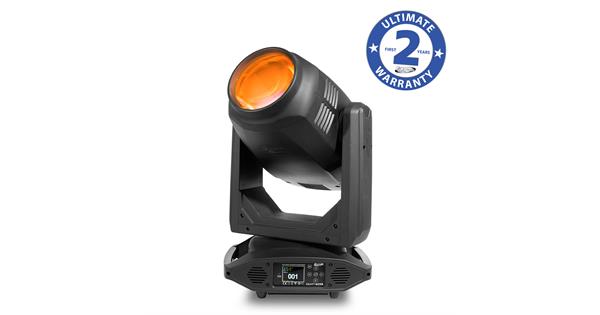

The SMARTY MAX™ combines high output and long lamp life in a feature packed compact and lightweight Hybrid fixture. SMARTY MAX is the Extreme Output Hybrid featuring the new Philips MSD Platinum FLEX 400 lamp. Rated at 480W and up to 4,000 hours smart lamp life the SMARTY MAX includes CMY and variable CTO and is the world’s first Hybrid incorporating a full Iris for dynamic beam effects. Four prisms on two planes, dual frosts plus dual gobo wheel and animation round out this package in a compact and lightweight housing. Delivering 21,000 lumens from its large 160mm front aperture, the SMARTY MAX has the output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application while providing an excellent return on investment.
"
FEATURES
480W 3-in-1 Spot, Beam and Wash Luminaire
Efficient Lamp Technology: up to 4.000 hours
Lamp Power at 370W - 480W
3° - 26.5° Spot, 1.5° - 16° Beam and 12° to 39° Wash Motorized Zoom Range
Dual Track Bi-directional Animation Wheel
Full CMY-Flag Color Mixing System
16-Facet, 8-Facet and 2x Linear, Rotating and Indexing Prisms
Prism Morphing
2 Linear Wash Frost Filters
Pan/Tilt Lock
Instant Hibernation Mode (Power Save) to 370W Lamp Power
Long-Term Hibernation Mode (Power Save) to 190W Lamp Power
SOURCE
Philips™ MSD Platinum Flex 400, 370W / 470W / 480W Lamp
Automated Lamp Hibernation with Instant Recovery
21,000 Total Output Lumens, 8,000K, 80CRI
4,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
462,508 LUX 42,968 FC @ 16.4’ (5m) (Spot)
1,784,448 LUX 165,781 FC @ 16.4’ (5m) (Beam)
EFFECTS
Dual Track Bi-directional Animation Wheel
16-Facet, 8-Facet and 2x Linear, Rotating and Indexing Prisms
Prism Morphing
2 Linear Wash Frost Filters
Motorized Iris
High Speed Mechanical Shutter and Strobe
COLOR
Full CMY-Flag Color Mixing System
Linear CTO-Flag Color Correction
13 Dichroic Colors + White (Open)
GOBOS
2 Gobo Wheels
8 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 16.0mm / ID 9.0mm**
14 Static-Stamped / Indexing Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (27 – 44)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
USB Firmware Service Port
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out (Art-NET and sACN)
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 15.3” (390mm)
Width: 17.5” (445mm)

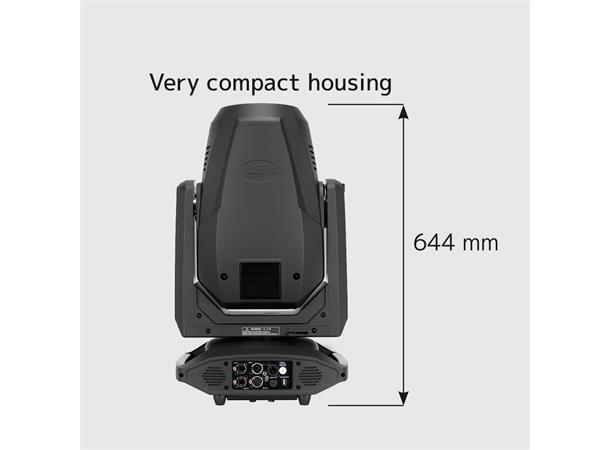

Vertical Height: 25.3” (642mm)
Weight: 60.0 lbs. (27.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Foam Inlay
2 Omega Brackets
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III
1521000360 Touring Case for 2x Smarty MAX FI
1521000361 PRO Case for 2x Smarty MAX FI
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
"
