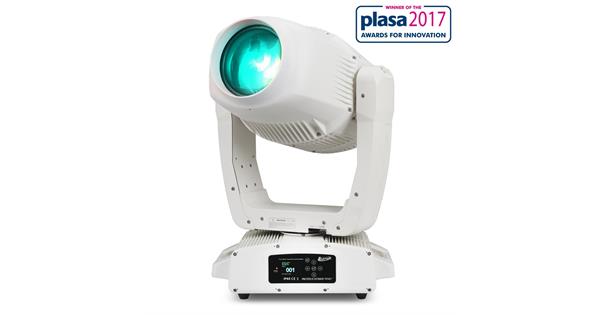

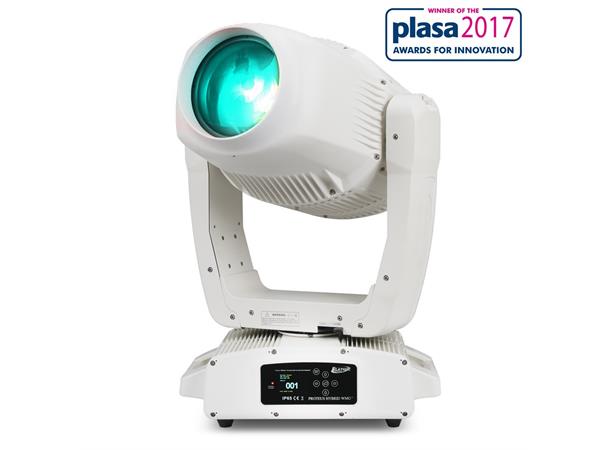

This groundbreaking IP65-rated discharge-lamp moving head is an award-winning 3-in-1 hybrid luminaire with spot, beam and wash capability. With Proteus, Elation has eliminated the need for costly shrouds and weatherproof coverings while doing away with the compromise that often comes with using IP-rated LED units. Featuring a rugged, multi-environmental IP65 design, the Proteus Hybrid is engineered specifically to empower designer creativity. An all-weather marine-grade housing is required for use outdoors, at sea, at outdoor performance areas or even on the pool deck where products with marine-grade specifications are highly appreciated.
"
***Only on Special Order***
FEATURES
IP65 Rated Dust and Water Protection
Marine Grade Coated Anti-Corrosion White Housing
470W IP Rated 3-in-1 Spot, Beam and Wash Luminaire
Advanced Independent Optical Systems without Compromising Performance
Advanced Internal Cooling and Heating System for Operation in Freezing or High Temperatures
3.8° - 38° Spot, 2° - 24° Beam and 4° - 40° Wash Motorized Zoom
Full 360° Bi-Directional Animation Wheel
Full CMY-Flag Color Mixing System and Linear CTO Color Correction
8-Facet and Linear, Rotating and Indexing Prisms
Prism Morphing
Wash Frost Filter
Pan/Tilt Lock
Variable Dimming Curves
Internal E-FLY™ Wireless DMX Receiver
SOURCE
Philips™ MSD Platinum 21R 470W Lamp
23,000 Total Lumens, 8,000K, 80CRI
1,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
13,375 LUX 1,243 FC @ 49.2’ (15m) (Spot)
233,000 LUX 21,646 FC @ 49.2’ (15m) (Beam)
11,500 LUX 1,068 FC @ 49.2’ (15m) (Wash)
EFFECTS
Full 360° Bi-Directional Animation Wheel
8-Facet and Linear, Rotating and Indexing Prisms
Prism Morphing
Wash Frost Filter
Motorized Iris
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves
COLOR
Full CMY-Flag Color Mixing System
Linear CTO-Flag Color Correction
14 Dichroic Colors + White (Open)
GOBOS
2 Gobo Wheels
8 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 16.4mm / ID 9.0mm**
14 Static-Stamped / Indexing Metal Gobos
CONTROL / CONNECTIONS
3 DMX Channel Modes (24 / 26 / 37)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
Internal E-FLY™ Wireless DMX Receiver
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out (Art-NET and sACN)
IP65 Locking Power Connector In
SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 22.5” (572mm)
Vertical Height: 31.7” (805mm)
Weight: 84.0 lbs. (38 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
INCLUDED ITEMS
2 Omega Brackets
IP65 Locking Power Connector to CEE 7/7 Cable
IP65 Locking Ethernet Cable
IP65 Locking XLR Cable
OPTIONAL ACCESSORIES
1322000061 IP Tester
1521000335 Touring Case 1x Proteus Hybrid
1521000338 PRO Case 1x Proteus Hybrid
1322000055 E-Fly Transceiver
1322000054 E Loader III
AWARDS
Plasa Award 2017 for Innovation
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
"
