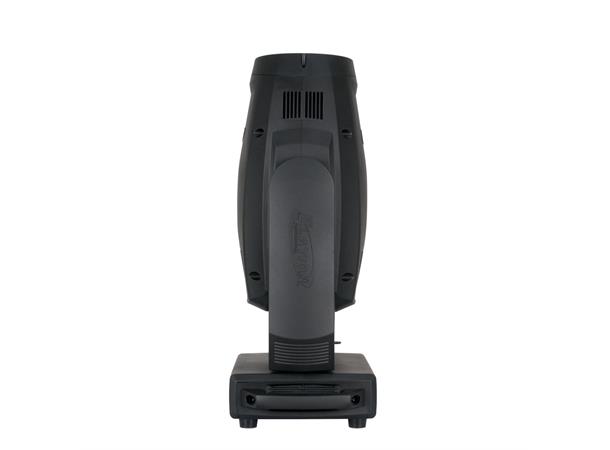

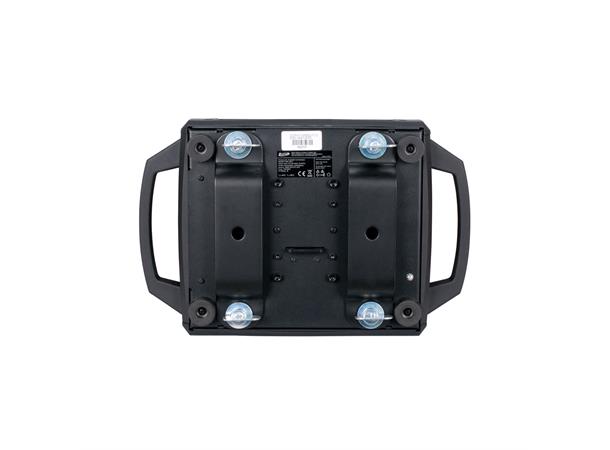

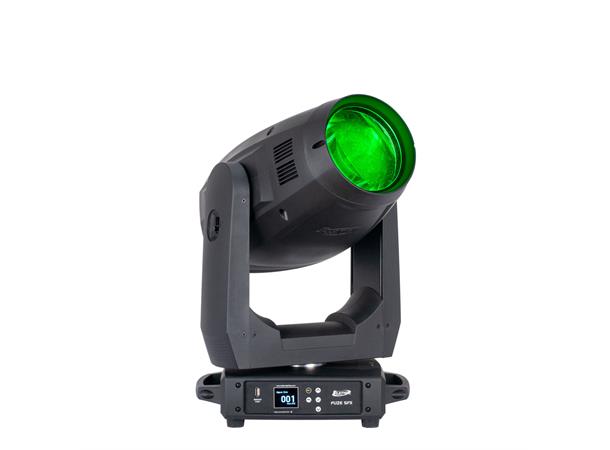

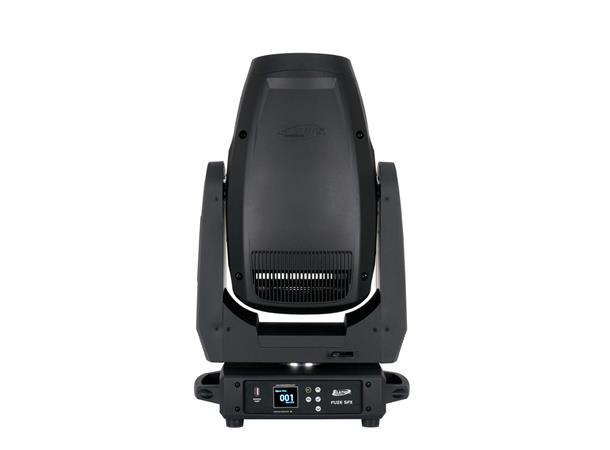

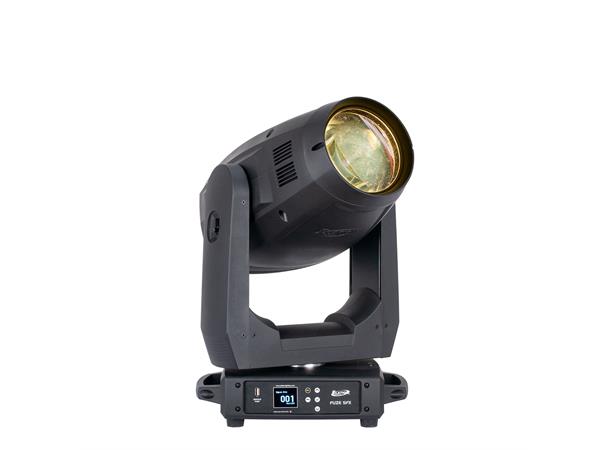

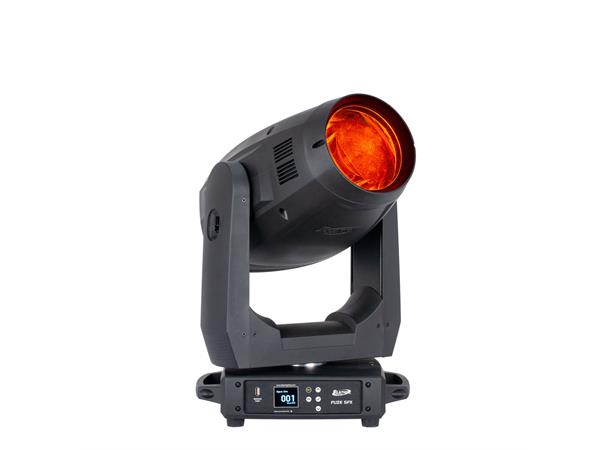

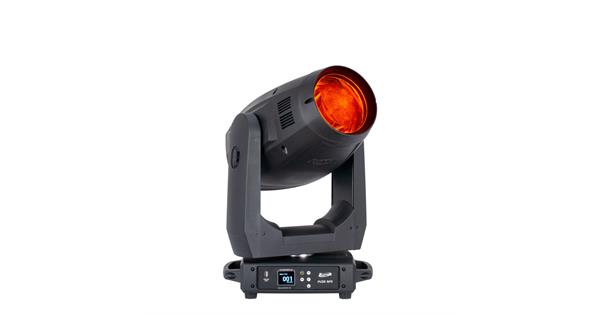

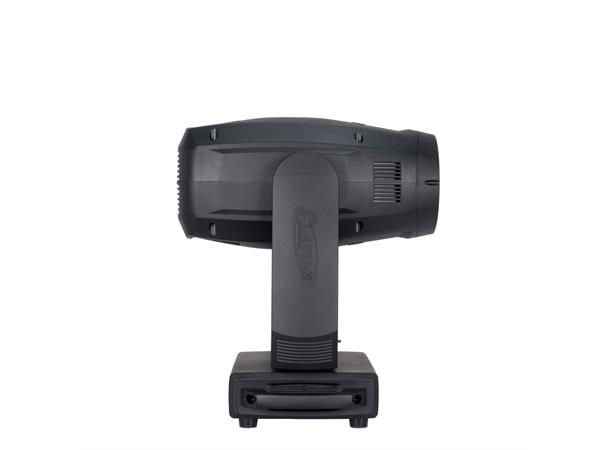

The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.
Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.
A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.
"
FEATURES
300W LED 6,600K White LED Engine
12,000 Total Lumen Fixture Output
Spot and Effects Fixture
Zoom Range from 4.5° to 38°
Variable CMY and 7-Position Color Wheel
8 Rotating and 10 Fixed Gobos
Dual Independent Prisms for Layering
Motorized Iris
Variable Wash Frost Filter
SPECIFICATIONS
SOURCE
300W 6,600K Bright White LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
12,135+ Total Lumen Output
CRI 68
EFFECTS
4.5° - 38° Motorized Zoom
Remote Focus
Variable Frost Filter
Dual Independent Prisms for Layering
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
CMY Variable Color Mix
7 Position Color Wheel
GOBOS
2 Gobo Wheels
Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
Wheel #2 with 10 Static Gobos
CONTROL / CONNECTIONS
31 DMX Channels
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

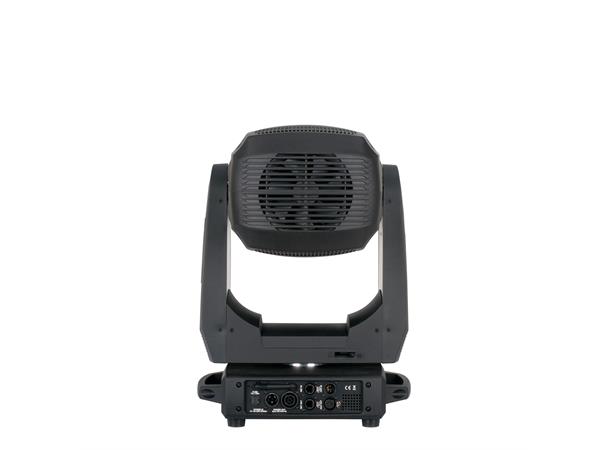

Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.6” (370mm)
Width: 10.1"" (230mm)
Vertical Height: 23.41"" (594.5mm)
Weight: 46.3 lbs. (19.3kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
432W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
